Quincy QP MAX 371C80VCAM Air Compressor – Pressure
$2,440.00
In Stock
Quincy QP MAX 371C80VCAM Air Compressor is a 7.5 HP pressure-lubricated reciprocating system equipped with an 80-gallon vertical tank for high-capacity air delivery. This rugged 175 PSI unit maintains peak performance through advanced internal lubrication for extended industrial component life.
Extreme Air Delivery: Supplies 22.6 CFM @175PSI.
Vertical Storage Configuration: Saves valuable floor space.
Full Cast Iron: Ensures maximum thermal stability.
Single Phase Power: Supports standard 230V.
Automotive Service Use: Powers large pneumatic equipment.
In Stock

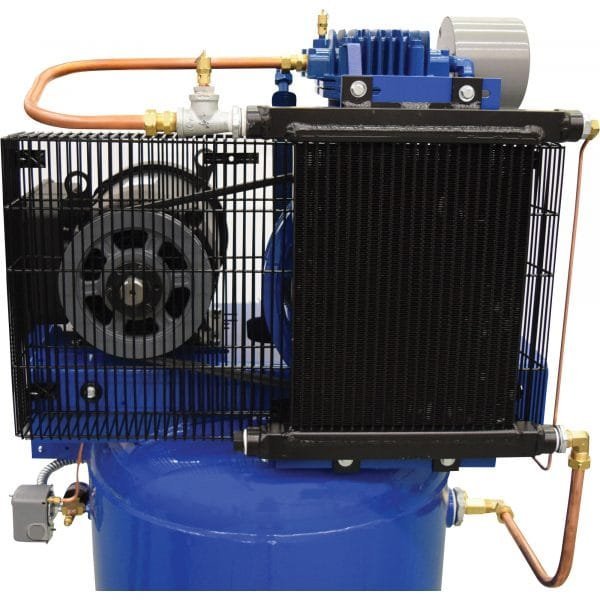

Quincy QP MAX 371C80VCAM Pressure-Lubricated Reciprocating Air Compressor
| Model | 371C80VCAM |
| Brand | Quincy |
| Warranty | 5-Year |
| Ship Weight | 720.0 lbs |
| Horsepower | 7.5 |
| Air Tank Size | 80 |
| Volts | 230 |
| Stage | 2 |
| CFM at 90 PSI | 23.8 |
| Max. PSI | 175 |
| CFM at Max. PSI | 22.6 |
| Working Pressure | 175 |
| Air Outlet Size | 3/4 |
| Motor RPM | 1,026 |
| Motor Phase | 1 |
| Amps | 40 at full load |
| Duty Cycle | 100 % |
| Pump Life | 60,000 |
| Pump Material | Cast iron cylinder, aluminum head |
| Oil Required | Yes |
| Low Oil Shutdown | Yes |
| Lubrication System | Pressure lube |
| Drain Type | Automatic |
| Weight (lbs.) | 720 |
| Dimensions L x W x H (in.) | 37 x 24 x 74 |
