Quincy QP-5 353DS80VCA23 Air Compressor – Pressure
In Stock
$1,701.00
In Stock
Quincy QP-5 353DS80VCA23 Air Compressor is a 5.0 HP pressure-lubricated 175 PSI system with an 80-gallon vertical tank for consistent industrial-grade air delivery.
High Performance Flow: Delivers 17.2 CFM @175PSI.
Vertical Tank Design: Minimizes shop footprint.
Full Cast Iron: Ensures thermal stability.
Three Phase Source: Operates on 230V.
Professional Workshop Tooling: Optimized for pneumatic.

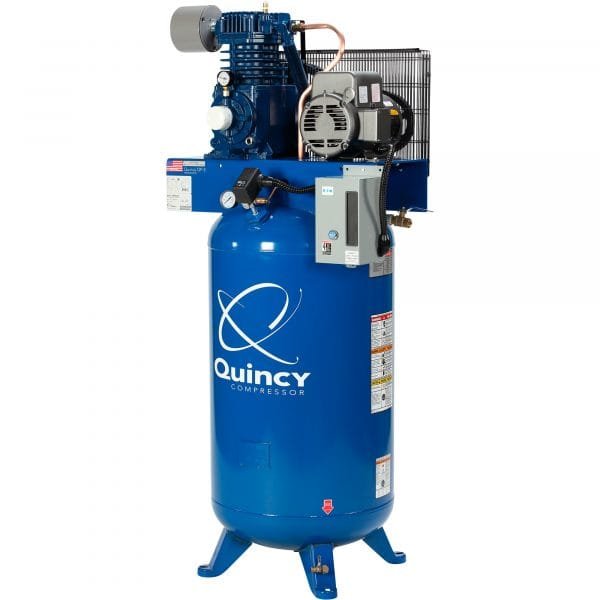

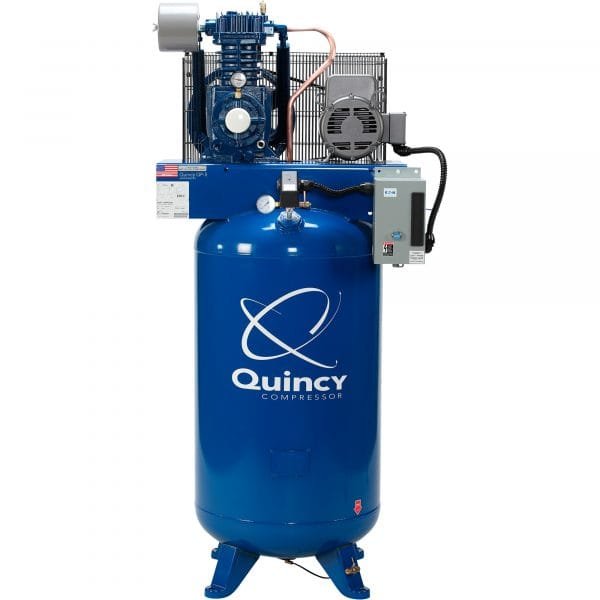

Quincy QP-5 353DS80VCA23 Pressure Lubricated Reciprocating Air Compressor
| Model | 353DS80VCA23 |
| Brand | Quincy Compressor |
| Warranty | 5-Year |
| Ship Weight | 680.0 lbs |
| Horsepower | 5 |
| Air Tank Size | 80 |
| Volts | 230 |
| Stage | 2 |
| CFM at 90 PSI | 18.6 |
| Max. PSI | 175 |
| Working Pressure | 145–175 |
| Air Outlet Size | 3/4 ball valve |
| Motor RPM | 942 |
| Motor Phase | 3 |
| Amps | 17.2 |
| Duty Cycle | 100 % |
| Pump Life | 60,000 |
| Pump Material | Cast iron |
| Noise Level (dB) | 74 |
| Oil Required | Yes |
| Lubrication System | Pressure |
| Drain Type | Manual |
| Weight (lbs.) | 680 |
| Dimensions L x W x H (in.) | 37 x 24 x 74 |
