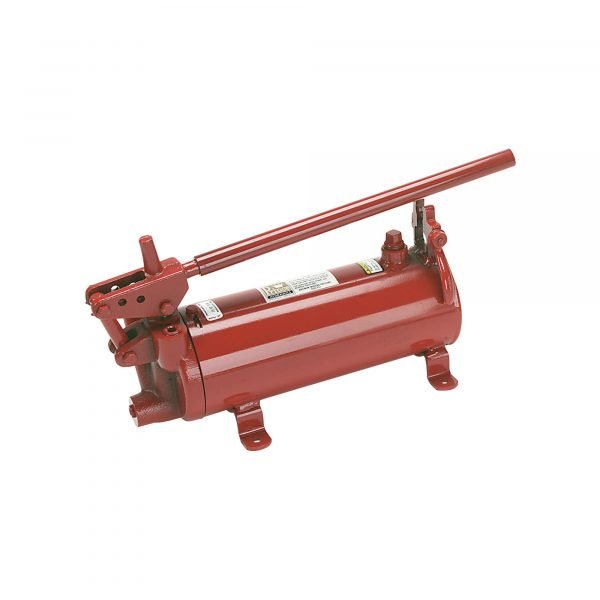

Prince PM-HP-10B Hydraulic Hand Pump 3000 PSI Single-Acting
The Prince PM-HP-10B Hydraulic Hand Pump provides portable, reliable hydraulic pressure up to 3000 PSI. This Single-Acting pump is ideal for operating small hydraulic cylinders on utility trailers, jacks, presses, and remote machinery. The robust construction of the Prince Hand Pump ensures durability and provides essential backup or primary hydraulic power when electricity is unavailable.
Description
Powerful! Operates a hydraulic press, dump, plow, snowblade, platform, frame straightener or similar equipment. 3 positions: 1) 1.25 cu. in. per stroke @1,500 PSI, 2) .95 cu. in per stroke @ 2,000 PSI, 3) .60 cu. in. per stroke @ 3000 PSI. One-gallon reservoir. Inlet check valve, release valve. Pressure port 3/8in. NPT. Applied handle force 60-65 lbs. Use on up to 200 cu. inch, single- or double-acting cylinder. 16 1/2in.L.
| Item# | 1098 |
| Brand | Prince |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 33.0 lbs |
| Product Type | Pumps |
| Max. PSI | 3,000 |
| Material | Steel |
| Weight (lbs.) | 30 |
Prince PM-HP-10B Hydraulic Hand Pump Specs
| Brand | Prince |
| Full Model Code | PM-HP-10B (Item# 1098) |
| Country of Origin | USA |
| Tool Category | Single-Acting Hydraulic Hand Pump |
| Maximum Operating Pressure | 3,000 PSI |
| Capacity Class | 0.60 to 1.25 cu. in. per stroke |
| Oil Capacity | 1 Gallon |
| Material | Steel |
| Coupler Type | 3/8 in NPT Pressure Port |
| Standard Warranty | 1 year Limited Warranty |
| Product Weight | 30 lbs (13.61 kg) |
| Application | Manually operating hydraulic presses, plows, and frame straighteners up to 200 cu. in. cylinders. |
