Kohler SH265 Courage – 6.5HP 196cc Horizontal
$187.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description

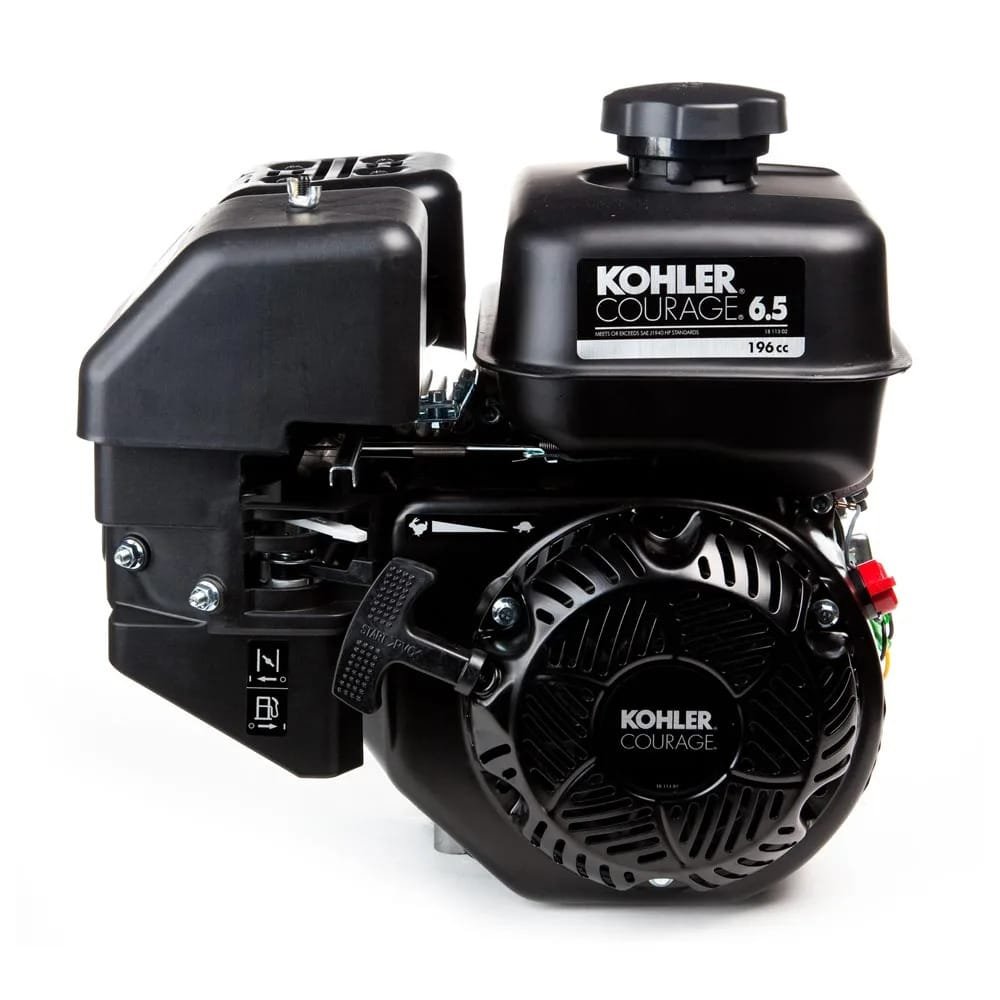

Kohler SH265 3011 Horizontal Engine
Kohler SH265-3011 horizontal single-cylinder Courage engine is 196cc and puts out 6.5 HP (maximum horsepower). This SH265 has a 3/4″ x 2.42″ crankshaft, an indexable recoil starter and a large capacity muffler with heat shield. It replaces model PA-SH265-0011.
| BRAND | Kohler |
|---|---|
| MODEL NUMBER | SH265-3011 |
| WARRANTY | 2 Year Consumer / 90 Day Commercial |
| SHIPPING WEIGHT | 40 |
| DISPLACEMENT | 196cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 3/4″ x 2.42″ |
| CRANKSHAFT DIAMETER | 3/4″ |
| CRANKSHAFT LENGTH | 2.42″ |
| CRANKSHAFT END TAPPED SIZE | 5/16 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Bowl |
| CHOKE CONTROL | Manual and Remote |
| BOLT CIRCLE | None |
| PTO HEIGHT | 4 – 11/64 |
Kawasaki FH601D - 19HP V-Twin Horizontal Engine Specs
| Brand | Kawasaki |
| Full Model Code | FH601D-DS01 |
| Country of Origin | Japan |
| Engine Series/Family | FH Series (4-Stroke V-Twin) |
| Engine Type | Air-cooled 4-stroke 90° V-twin OHV |
| Displacement | 675 cc |
| Net Power Output | 19.0 HP (14.2 kW) @ 3,600 rpm |
| Max. Net Torque | 50.4 Nm (37.2 lbs-ft) @ 2,400 rpm |
| Bore x Stroke | 75.2 x 76 mm |
| Compression Ratio | 8.1:1 |
| Cooling System | Forced Air |
| Ignition System | Electronic Spark Ignition |
| Starting System | Electric Start |
| Fuel Tank Capacity | External Tank |
| Fuel Consumption | 5.8 L/h @ 3,600 rpm |
| Oil Capacity & Grade | 1.9 L (SAE 10W-40) |
| PTO Shaft Rotation | Counterclockwise |
| Dry Weight | 40.5 kg (89.3 lbs) |
| Dimensions | 331 x 432 x 457 mm |
| Application | Zero-turn mowers and industrial generators. |
