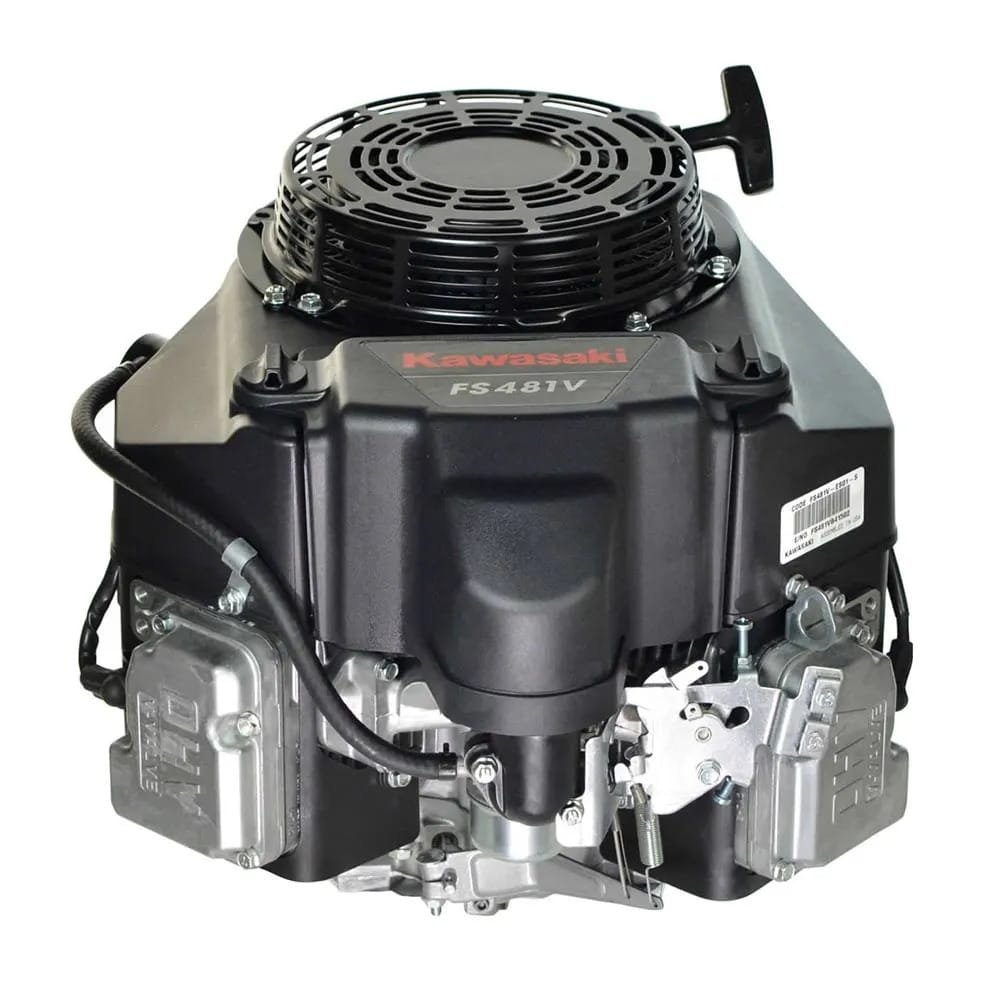

Kawasaki FS481V – 15HP V-Twin Vertical Commercial
$713.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Kawasaki FS481V-S01-S vertical OHV 4-cycle V-Twin engine is 603cc and puts out 14.5HP (maximum horsepower). This FS481V has a 1″ x 3-5/32″ (80mm) crankshaft, a recoil starter and a clutch coil.
| BRAND | Kawasaki |
|---|---|
| WARRANTY | 3 Year |
| DISPLACEMENT | 603cc |
| CRANKSHAFT ORIENTATION | Vertical |
| FUEL SYSTEM | Gasoline |
| CRANKSHAFT DIAMETER | 1″ |
| CRANKSHAFT LENGTH | 3-5/32″ |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CYLINDERS | 2 |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | Yes |
| OIL CAPACITY | 1.8 qt |
| CARBURETOR TYPE | Internally Vented, Float Type, Fixed Main Jet, Single Barrel |
| MAX RPM | 3600 |
Kawasaki FS481V - 15HP V-Twin Vertical Commercial Technical Specifications
| Brand | Kawasaki |
|---|---|
| Full Model SKU | FS481V |
| Country of Origin | USA |
| Engine Type | 4-Stroke OHV V-Twin |
| Displacement | 603 cc |
| Horsepower / Net Power | 14.5 HP @ 3600 RPM |
| Net Torque | 29.2 Ft-Lbs @ 1800 RPM |
| Crankshaft Diameter | 25.4 mm (1 inch) |
| Crankshaft Length | 80 mm (3.15 inch) |
| Crankshaft End | Keyed |
| Starter System | Electric Start |
| Oil Capacity | 1.7 Liters |
| Lubrication System | Full Pressure Lubrication |
| Governor System | Mechanical |
| Air Filter Type | Dual Element |
| Net Weight | 36.7 kg |
| Application | Commercial Turf Equipment, Zero-Turn Mowers |
