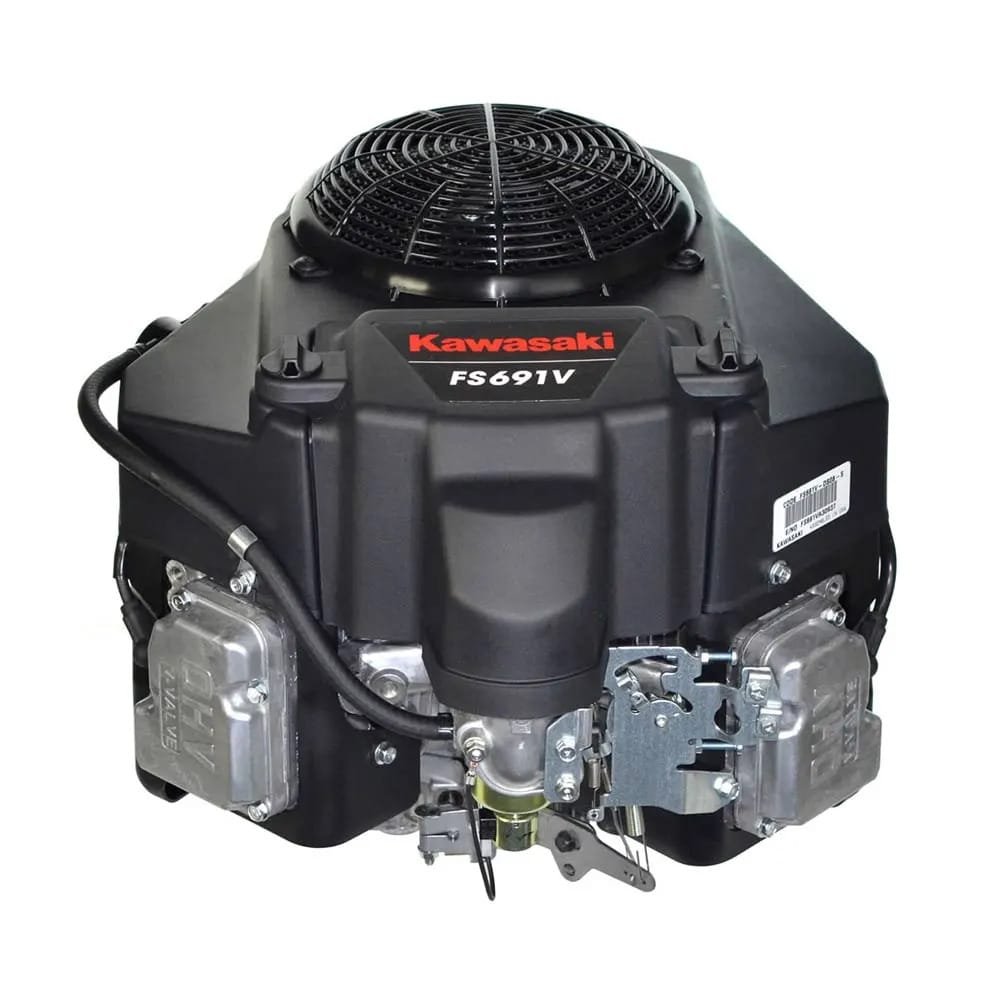

Kawasaki FS691V – 22HP V-Twin Vertical Commercial
$1,079.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Kawasaki FS691V-S08-S vertical OHV 4-cycle V-Twin engine is 726cc and puts out 23 HP (maximum horsepower). This FS691V has a 1″ x 3-5/32″ (80mm) crankshaft, an electric starter and a charging coil.
| BRAND | Kawasaki |
|---|---|
| WARRANTY | 3 Year |
| DISPLACEMENT | 726cc |
| CRANKSHAFT ORIENTATION | Vertical |
| FUEL SYSTEM | Gasoline |
| CRANKSHAFT DIAMETER | 1″ |
| CRANKSHAFT LENGTH | 3-5/32″ |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CYLINDERS | 2 |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | Yes |
| OIL CAPACITY | 2.1 qt |
| CARBURETOR TYPE | Internally Vented, Float Type, Fixed Main Jet, Single Barrel |
| MAX RPM | 3600 |
Kawasaki FS691V - 22HP V-Twin Vertical Commercial Technical Specifications
| Brand | Kawasaki |
|---|---|
| Full Model SKU | FS691V |
| Country of Origin | USA |
| Engine Type | 4-Stroke OHV V-Twin |
| Displacement | 726 cc |
| Horsepower / Net Power | 22.0 HP @ 3600 RPM |
| Net Torque | 37.2 Ft-Lbs @ 2200 RPM |
| Crankshaft Diameter | 25.4 mm (1 inch) |
| Crankshaft Length | 80 mm (3.15 inch) |
| Crankshaft End | Keyed |
| Starter System | Electric Start |
| Oil Capacity | 2.1 Liters |
| Lubrication System | Full Pressure Lubrication |
| Governor System | Mechanical |
| Air Filter Type | Dual Element |
| Net Weight | 40.1 kg |
| Application | Commercial Turf Maintenance Equipment |
