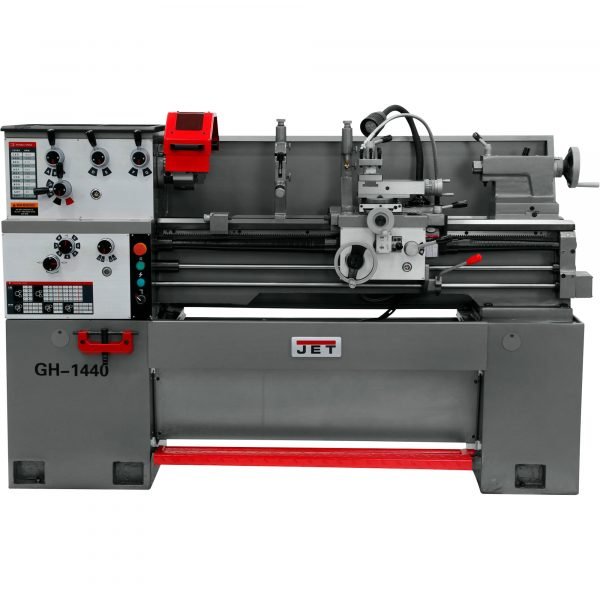

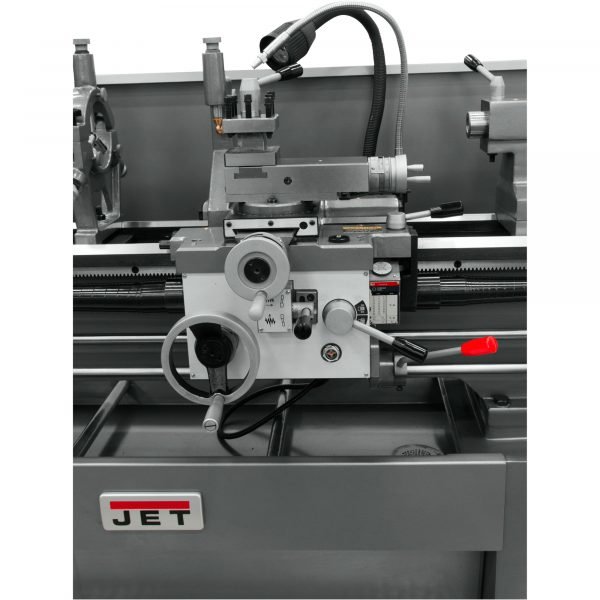

JET GH-1440-3 Geared Head Lathe – 14in x 40in, 3PH
Description
This heavy-duty, 3-phase JET Geared Head Lathe weighs over 1 ton and comes equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide smooth and quiet operation while maintaining peak performance. Includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked. Features a 14in. swing over bed and 40in. distance between centers. 40 inch threads/ 23 metric threads. Item too large for lift gate. Forklift required for on site unloading.
What’s Included
- (1) Geared head lathe
| Item# | 66109 |
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 2336.0 lbs |
| Distance Between Centers (in.) | 40 |
| Swing Over Bed (in.) | 14 |
| Volts | 230/460 |
| Horsepower | 3 |
| Speed (RPM) | 40–1,800 |
| Spindle Bore (in.) | 1 1/2 |
| Spindle Mount | D1-4 |
| Carriage Travel (in.) | 37 1/2 |
| Thread Cutting (in.) | 4–112 |
| Thread Cutting (mm) | 0.45–7.5 |
| Stand Included | Yes |
| Dimensions L x W x H (in.) | 74 13/16 x 30 x 56 1/2 |
| Product Weight | 2,336 lb |
JET GH-1440-3 Geared Head Engine Lathe Specs
| Brand | JET |
| Full Model Code | GH-1440-3 |
| Country of Origin | China |
| Lathe Type | Heavy-Duty Engine Lathe |
| Swing Over Bed | 14 inches |
| Distance Between Centers | 40 inches |
| Spindle Bore | 1-1/2 inches |
| Spindle Taper | D1-4 |
| Spindle Speed Range | 40–1,800 RPM |
| Thread Range - Inch | 4–112 TPI (40 threads) |
| Thread Range - Metric | 0.45–7.5 mm (23 threads) |
| Safety Features | Electronic Chuck Key Docking Station, Lead Screw Cover |
| Motor Power | 3 HP |
| Electrical Requirement | 230/460 Volts (3-Phase) |
| Product Weight | 2,336 lbs (1,059.59 kg) |
| Machine Dimensions | 74.81 x 30 x 56.5 in |
| Application | Industrial-grade heavy turning with Meehanite castings and patended safety startup protection. |
