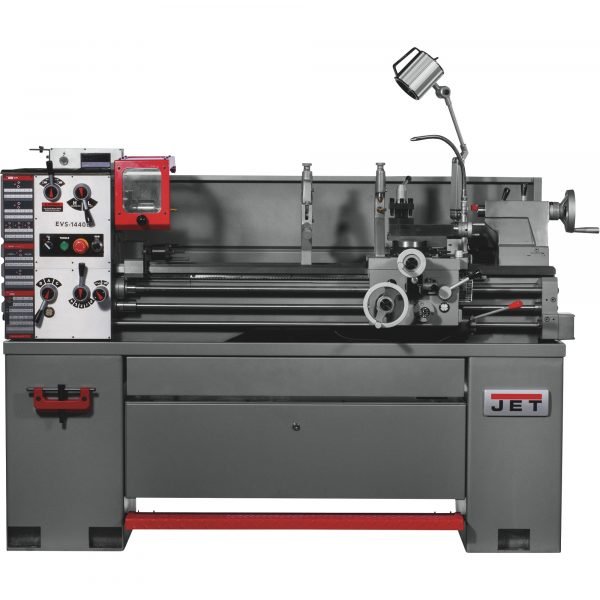

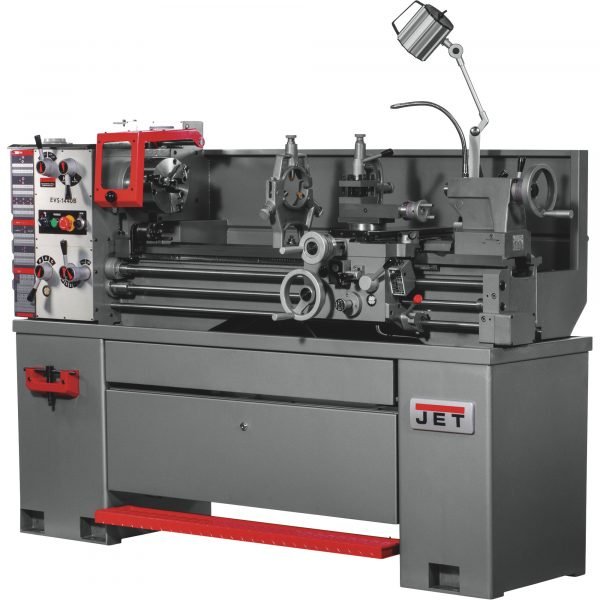

JET EVS-1440B Elite Electronic VS Lathe – 14in x 40in, 3 HP
$6,786.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
The JET 14in. x 40in. Electronic Variable-Speed Lathe is engineered to maximize your shop’s output. The D1 4 Spindle is precision-ground for accuracy and supported by class 7 tapered roller bearings, capable of a run out maximum of .0004in. The 2-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM and at high speeds from 220 to 2000 RPMs. Includes stand.
What’s Included
- (1) JET 14in. x 40in. lathe, Model# EVS-1440B
| Item# | 108548 |
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 1584.0 lbs |
| Distance Between Centers (in.) | 40 |
| Swing Over Bed (in.) | 14 |
| Volts | 230/460 |
| Speed (RPM) | 1,800 |
| Spindle Bore (in.) | 1 9/16 |
| Spindle Mount | Spindle nose mounting D1-4 camlock, Spindle taper with sleeve MT-5 |
| Carriage Travel (in.) | 35 1/2 |
| Thread Cutting (in.) | 2-56 TPI |
| Thread Cutting (mm) | 0.5-12 |
| Stand Included | Yes |
| Dimensions L x W x H (in.) | 68.5 x 28.3 x 50 |
JET EVS-1440B Elite Electronic VS Lathe Specs
| Brand | JET |
| Full Model Code | EVS-1440B |
| Country of Origin | Taiwan |
| Lathe Type | Electronic Variable Speed Lathe |
| Swing Over Bed | 14 inches |
| Distance Between Centers | 40 inches |
| Spindle Bore | 1-9/16 inches |
| Spindle Taper | MT-5 (with sleeve) |
| Spindle Speed Range | 40–2,000 RPM |
| Number of Spindle Speeds | Variable (2-Speed Gearbox) |
| Thread Range - Inch | 2–56 TPI |
| Thread Range - Metric | 0.5–12 mm |
| Motor Power | 3 HP |
| Electrical Requirement | 230/460 Volts |
| Product Weight | 1,584 lbs (718.49 kg) |
| Machine Dimensions | 68.5 x 28.3 x 50 in |
| Application | Precision tool making and professional shop production with high-accuracy class 7 bearings. |
What's Included
- (1) JET 14in. x 40in. lathe, Model# EVS-1440B
