Jenny F12A-17 Air Compressor – 0.5HP 17Gal
In Stock
$1,146.00
In Stock
Jenny F12A-17 Air Compressor 0.5HP 17Gal This high-efficiency 0.5 HP stationary system features a specialized 17-gallon vertical configuration designed to provide quiet and reliable pneumatic volume for light-duty laboratory and instrumentation applications.
Efficient Motor Power: Delivers steady 0.5 HP output
Vertical Tank Configuration: Features 17-gallon stationary receiver design
Standard Residential Voltage: Requires 115V single-phase electrical power
Maximum Sustained Pressure: Maintains consistent 125 PSI delivery
Professional Shop Advantage: Permits continuous duty pneumatic utility
Description

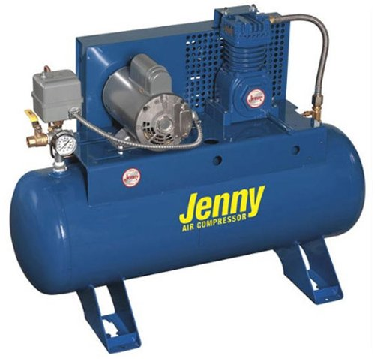

Jenny F12A-17 0.5HP 17 Gallon Compressor
The Jenny F12A-17 is a specialized single-stage electric air compressor designed for applications requiring precise, low-volume airflow with maximum tank reserve. This 17-gallon unit utilizes a 0.5HP industrial motor, making it an excellent choice for laboratories, small climate control systems, or light-duty pneumatic tasks where a massive air storage buffer is needed for intermittent operation.
The pump is built for longevity, featuring a belt-driven cast iron assembly that operates at lower RPMs to reduce mechanical wear. Relying on industrial reciprocating air compressors from the F-series ensures a quiet and efficient air supply, backed by a large cooling flywheel that maintains optimal pump temperatures during even the longest duty cycles.
Jenny F12A-17 Key Features
- Tank Size: 17 Gallon Horizontal
- Lubrication: Synthetic Oil Splash
- Starting System: Pressure Switch Control
- Fuel System: 115V Single Phase
- Max Pressure: 125 PSI Rating
- Air Displacement: 3.4 CFM Delivery
- Warranty: 1 Year Unit
ASME Certified Safety
The 17-gallon horizontal tank is powder-coated and ASME certified to meet strict industrial safety standards for pressure vessels. The unit includes protectively mounted fittings, a manual tank drain, and a high-quality pressure relief safety valve to prevent over-pressurization. This focus on structural integrity makes it suitable for sensitive environments requiring a high-quality stationary air source.
Laboratory and Climate Control
Perfectly suited for small-scale automation, temperature control systems, and laboratory instruments, this model provides a steady stream of clean, pressurized air. Its low power draw allows for installation on standard circuits without specialized wiring. Facility managers appreciate the F12A-17 for its ease of maintenance and its remarkably durable American-made cast iron pump design.
Trust the Jenny F12A-17 to provide a stable and efficient low-horsepower air solution for your specialized technical environment. Contact our technical team to Request Technical Quote or Check Availability at Muldepot.com.
Jenny F12A-17 Air Compressor Specs
| Brand | Jenny |
| Full Model Code | F12A-17 |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Single-Stage) |
| Lubrication Style | Splash Lubricated (Jenny Ultimate Blue Oil) |
| Cooling System | Air Cooled |
| Motor Power | 0.5 HP |
| Max Working Pressure | 125 Psi |
| Free Air Delivery / Capacity | 2.1 CFM @ 100 Psi |
| Drive Type | Belt Drive (Electric) |
| Noise Level | 68-72 dB(A) |
| Outlet Connection Size | 1/4 Inch NPT |
| Tank Volume | 17 Gallons (Horizontal) |
| Dimension (LxWxH) | 864 x 356 x 660 mm |
| Net Weight | 62 kg |
| Control Panel Type | Pressure Switch Controlled |
| Voltage/Phase/Frequency | 115V / 1 Phase / 60 Hz |
| Standard Warranty | 1 Year Limited |
| Maintenance Interval | 500 Hours |
| Application | Precision lab equipment, small pneumatic controls, and light-duty maintenance where high-quality air is required. |
