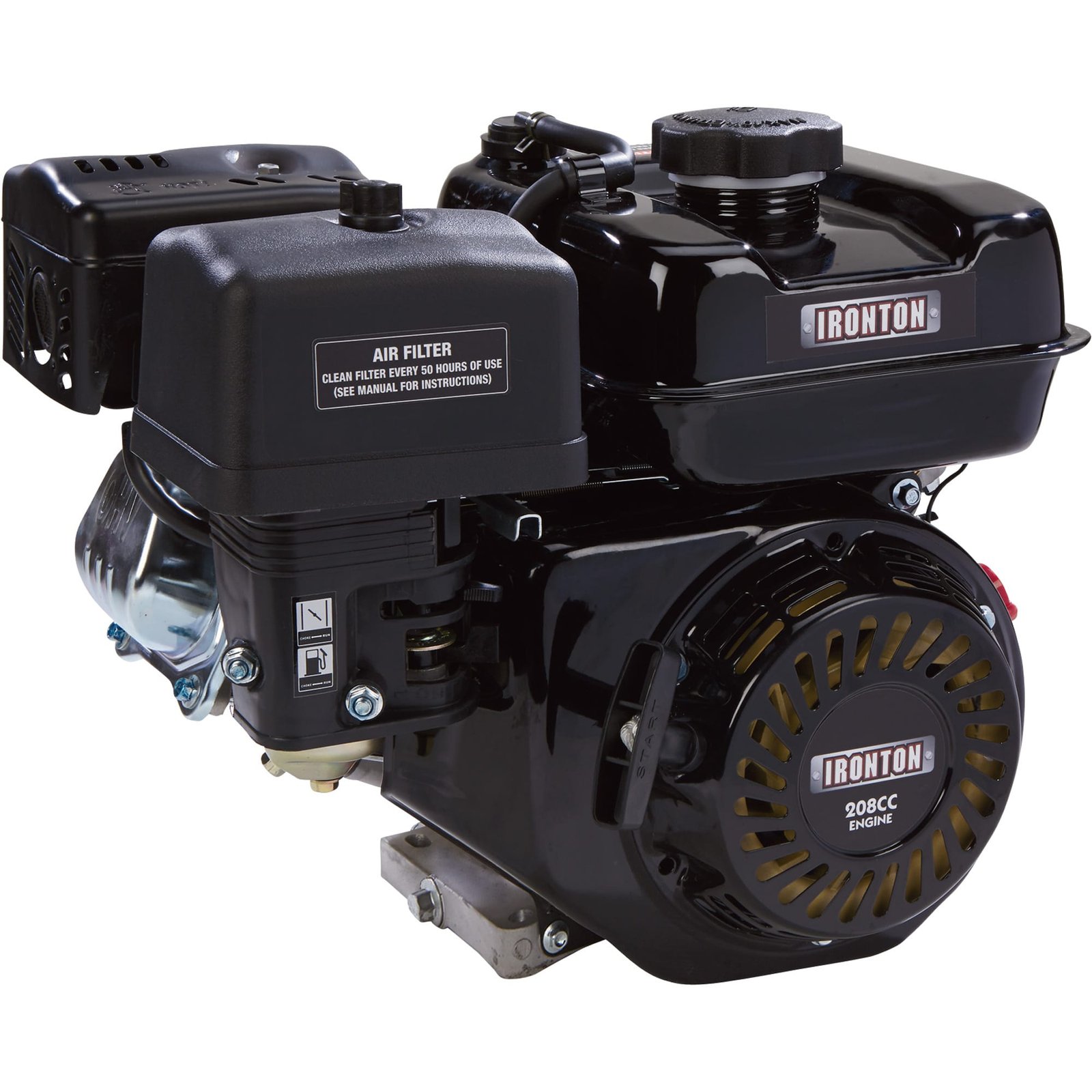

Ironton 208cc – 6.5HP Horizontal OHV Engine (3/4″ Shaft)
In Stock
$89.00
In Stock
Simplify commercial equipment replacement with the Ironton 208cc Horizontal Engine featuring a 6.5HP output and three-quarter inch shaft for versatile mechanical coupling.
- Power: 208cc OHV Engine
- Shaft: 3/4″ Keyed Straight
- Protection: Low-Oil Shutdown
- Start: Easy Recoil Pull
- Warranty: One Year Limited
Description
Professional Coffee Equipment
Ironton OHV Horizontal Engine 208cc 3 4in. 19.05mm x 2 19 64in. 58.5mm Shaft
| Brand | Ironton |
| Manufacturer's Warranty | 3 months parts / 3 months labor |
| Ship Weight | 37.4 lbs |
| Engine Displacement | 208 cc |
| Engine Type | OHV |
| Start Type | Recoil |
| Shaft Diameter | 3/4 in |
| Shaft Length | 2.29 in |
| Shaft Diameter Metric | 19.05 mm |
| Shaft Length Metric | 58.5 mm |
| Shaft Output | Horizontal |
| Shaft Keyway | 0.19 in |
| Shaft Rotation (From PTO Shaft Side) | Counterclockwise |
| PTO Height | 4.17 in |
| Cylinders (qty.) | 1 |
| Cylinder Bore | Cast iron |
| Cooling System | Air cooled |
| Air Cleaner Type | Pleated paper w/foam pre-cleaner |
| Fuel Tank Capacity | 3.38 qt |
| Oil Capacity | 0.5 qt |
| Low Oil Alert | Yes |
| Lubrication System | Splash |
| Ignition System | Electronic |
| Governor System | Mechanical |
| Carburetor | Float/choke |
| Max. RPM | 3,800 |
| Muffler Included | Yes |
| CARB Approval | No |
| Bolt Circle | 3.625 in |
| Mounting Base Length | 6.4 in |
| Mounting Base Width | 3.07 in |
| Dimensions L x W x H (in.) | 16.5 x 15 x 14.8 in |
