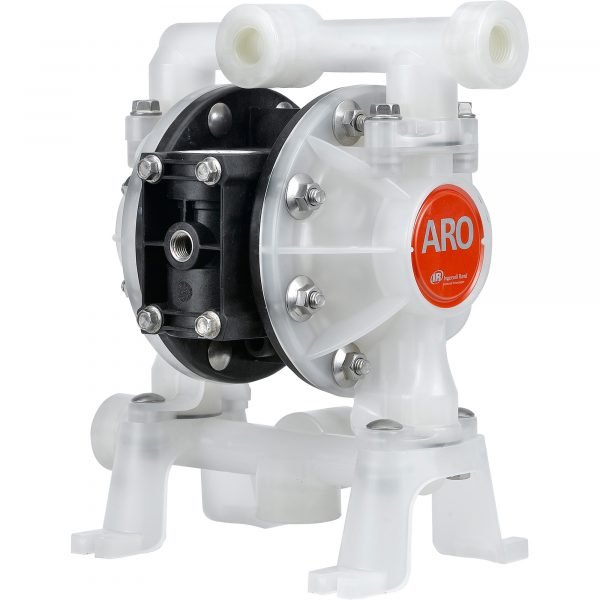

Ingersoll Rand PD05P-ALS-KTT-B Diaphragm Pump 1/2in Ports 14.4 GPM
The Ingersoll Rand PD05P-ALS-KTT-B Diaphragm Pump is a specialized chemical-resistant unit featuring 1/2in Ports and a flow rate of 14.4 GPM. Built with durable Polypropylene housing and specialized elastomers, this Diaphragm Pump is designed for handling specific corrosive or aggressive industrial media. The Ingersoll Rand PD05P-ALS-KTT-B Diaphragm Pump offers excellent chemical resistance and reliable performance for challenging batch transfer and recirculation tasks in industrial processing.
Description
This Ingersoll Rand Air-Operated Diaphragm Pump combines versatility with exceptional performance. The compact, heavy-duty design enables usage in a variety of locations including limited space. An unbalanced valve design helps to eliminate valve centering and pump stall-out. The Simul-Shift valve provides an ultra-positive, reliable shift signal for maximum efficiency. 5-year limited warranty.
What’s Included
- (1) Air-operated diaphragm pump
| Item# | 85501 |
| Brand | Ingersoll Rand |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 9.82 lbs |
| Flow | 14.4 GPM |
| Inlet Port | 1/2 |
| Outlet Port | 1/2 |
| Diaphragm Material | PTFE |
| Average Air Consumption | 11.5 CFM |
| Operating PSI | 100 |
| Max. PSI | 100 |
| Air Inlet Size NPT | 1/4 |
| Gear Ratio | 1:1 |
| Max. Fluid Temp. | 175°F |
| Pump Housing Material | PVDF |
| Max. Suspended Solids | 3/32in. |
| Product Weight | 9.82 lb |
| Dimensions L x W x H (in.) | 10 x 7 x 11 in |
Ingersoll Rand PD05P-ALS-KTT-B Diaphragm Pump 1/2in Ports 14.4 GPM Specs
| Brand | Ingersoll Rand |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 9.82 lbs |
| Flow | 14.4 GPM |
| Inlet Port | 1/2 |
| Outlet Port | 1/2 |
| Diaphragm Material | PTFE |
| Average Air Consumption | 11.5 CFM |
| Operating PSI | 100 |
| Max. PSI | 100 |
| Air Inlet Size NPT | 1/4 |
| Gear Ratio | 1:1 |
| Max. Fluid Temp. | 175°F |
| Pump Housing Material | PVDF |
| Max. Suspended Solids | 3/32in. |
| Product Weight | 9.82 lb |
| Dimensions L x W x H (in.) | 10 x 7 x 11 in |
