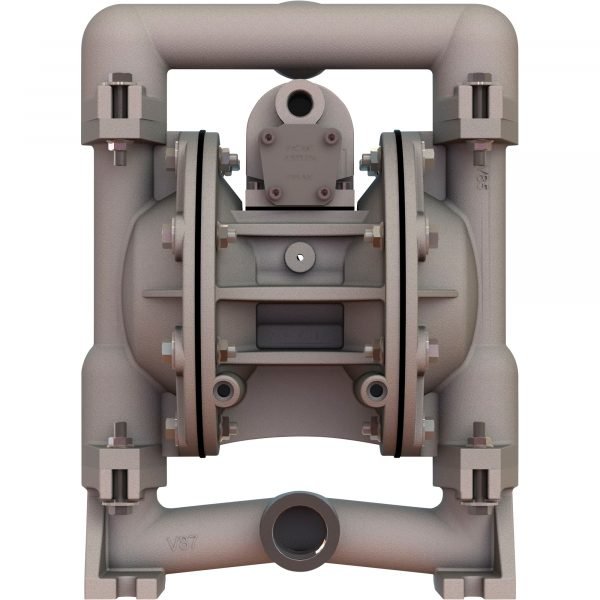

Versa-Matic E1AA2R229C 1in Double Diaphragm Pump 40 GPM Aluminum/Buna ATEX
The Versa-Matic E1AA2R229C 1in Double Diaphragm Pump is a robust industrial unit designed for reliable fluid transfer in hazardous areas, achieving a flow rate of 40 GPM (Gallons Per Minute). This Double Diaphragm Pump features a corrosion-resistant Aluminum housing and durable Buna (Buna-Nitrile) elastomers, optimized for petroleum-based fluids and general chemicals. The unit is ATEX certified for safe use in explosive atmospheres. The Versa-Matic E1AA2R229C 1in Double Diaphragm Pump is an essential tool for medium-to-high volume, solvent-resistant fluid handling.
Description
This air-operated Versa-Matic Double Diaphragm Pump with 1in. inlet and outlet ports and 40 GPM flow rate features a reliable air distribution system and all-bolted construction. The self-priming pump can run dry without damage and is capable of deadheading against a closed discharge, eliminating the need for bypass or pressure relief valves. A seal-less design and corrosion-resistant materials make the pump ideal for the handling of solids and for high-suction lift applications such as transferring antifreeze, ATF, light-viscosity petroleum and synthetic-based oil and waste oils. Includes ground capability to eliminate static discharge.
What’s Included
- (1) Diaphragm pump
| Item# | 110256 |
| Brand | VersaMatic |
| Ship Weight | 22.0 lbs |
| Flow | 40 GPM |
| Inlet Port | 1 in |
| Outlet Port | 1 in |
| Diaphragm Material | Buna |
| Average Air Consumption | 35 GPM |
| Operating PSI | 80 |
| Max. PSI | 125 |
| Air Inlet Size NPT | 0.375 in |
| Max. Fluid Temp. | 200°F |
| Pump Housing Material | Aluminum |
| Max. Suspended Solids | 0.125 in |
| Product Weight | 22 lb |
| Dimensions L x W x H (in.) | 9.33 x 10.72 x 14.54 |
Versa-Matic E1AA2R229C 1in Double Diaphragm Pump 40 GPM Aluminum/Buna ATEX Specs
| Brand | VersaMatic |
| Ship Weight | 22.0 lbs |
| Flow | 40 GPM |
| Inlet Port | 1 in |
| Outlet Port | 1 in |
| Diaphragm Material | Buna |
| Average Air Consumption | 35 GPM |
| Operating PSI | 80 |
| Max. PSI | 125 |
| Air Inlet Size NPT | 0.375 in |
| Max. Fluid Temp. | 200°F |
| Pump Housing Material | Aluminum |
| Max. Suspended Solids | 0.125 in |
| Product Weight | 22 lb |
| Dimensions L x W x H (in.) | 9.33 x 10.72 x 14.54 |
