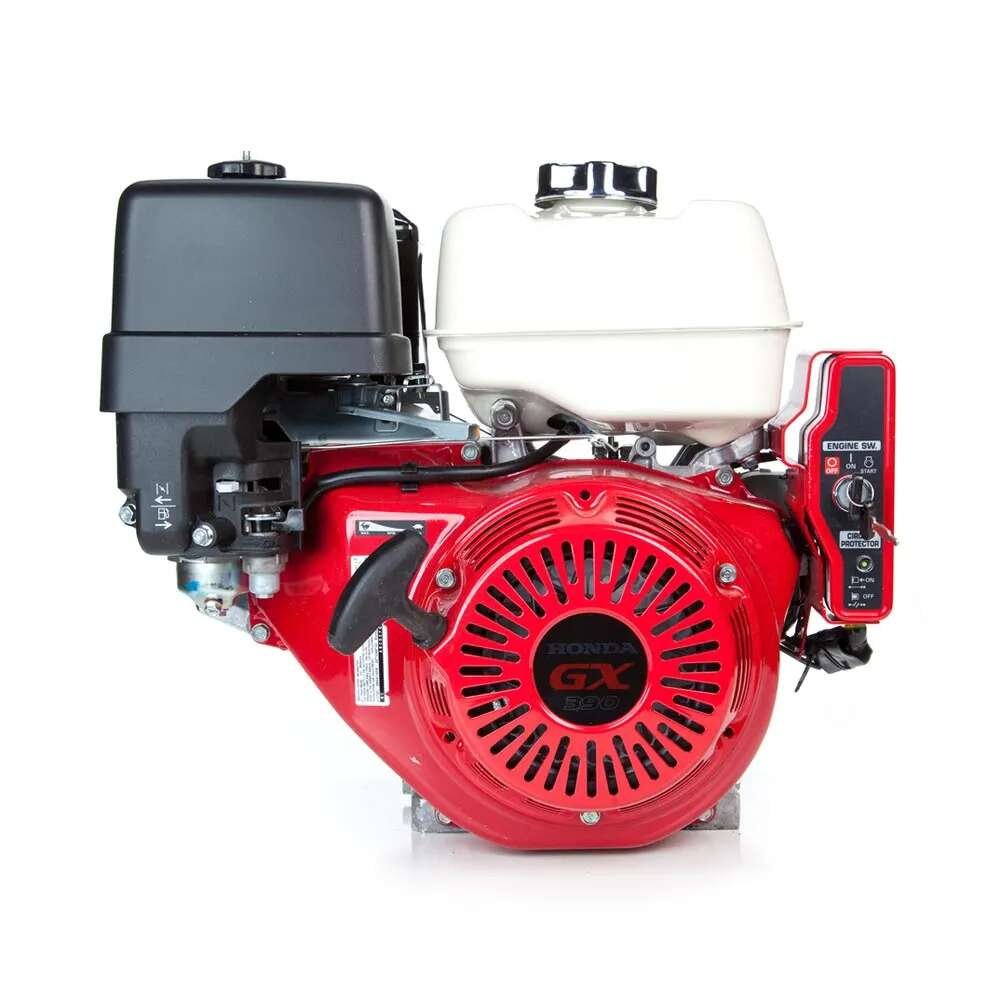

Honda GX390 – 13HP 389cc Horizontal Electric Start
In Stock
$479.00
In Stock
Dominate heavy-duty job sites with the 13HP 389cc Honda GX390 Engine, featuring electric start and a horizontal shaft for maximum professional reliability in industrial applications.
- Power: 13.0 Net HP 389cc
- Start: 12V Electric Start System
- Shaft: One Inch Keyed Horizontal
- Protection: Oil Alert Safety System
- Warranty: Three Year Commercial Warranty
Description
Honda GX390 QAE2 Horizontal Engine
Honda GX390 QAE2 (GX390UT2QAE2) horizontal OHV engine is 390cc and puts out 11.7 net HP. This Honda GX has a 1″ x 3-31/64″ crankshaft. The engines has an electric starter, a 3-amp charging system with rectifier, a silent muffler with spark arrestor and deflector, plus an oil alert system.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX390-QAE2 |
| REPLACES MODELS | GX390U1QAE2, GX390UTQAE2, GX390K1QAE2, GX390UT2QAE2, GX390UT1QAE2, GX390 QAE2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 86 |
| DISPLACEMENT | 389cc |
| STARTER TYPE | Electric & Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 3-31/64″ |
| CRANKSHAFT LENGTH | 3-31/64″ |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 38 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | Yes |
| IGNITION SYSTEM | Digital CDI with Variable Timing |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 5,6-1/2 |
| PTO HEIGHT | 5 – 1/4 |
