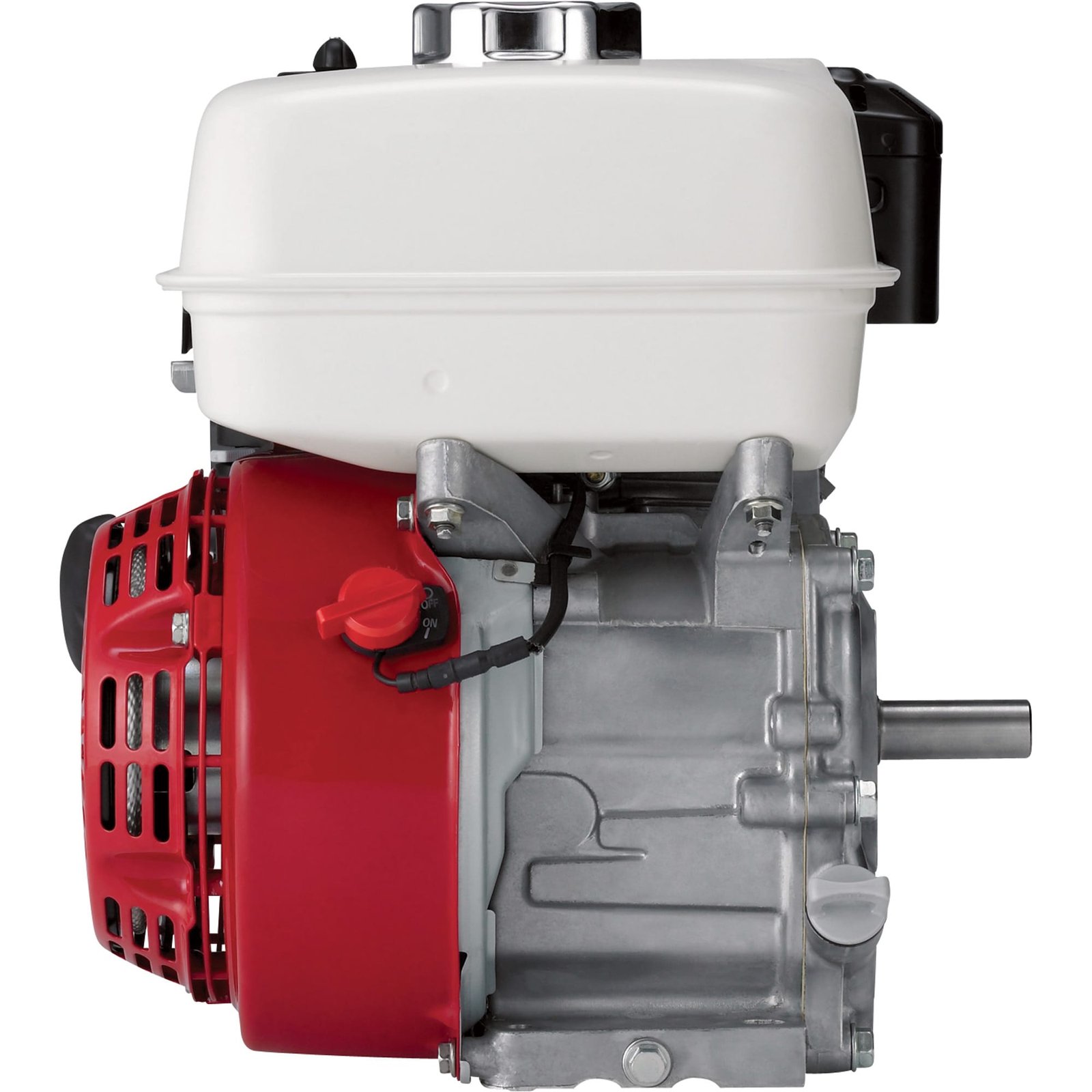

Honda GX200 – 196cc 6.5HP Horizontal Engine (3/4″ Keyed Shaft)
In Stock
$239.00
In Stock
Power your industrial equipment with the Honda GX200 Horizontal Engine featuring a 196cc overhead valve design and three-quarter inch keyed shaft for high-torque commercial performance.
- Engine: Professional-grade 196cc OHV four-stroke power plant
- Shaft: Three-quarter inch precision-ground keyed straight shaft
- Start: Integrated recoil starter with automatic decompression hardware
- Reliability: Oil Alert system for enhanced engine protection under heavy load
- Honda Trust: Three year official commercial warranty
Description
Professional Coffee Equipment
Honda GX Series Horizontal OHV Engine 196cc 3 4in x 2 7 16in Shaft Model GX200UT2QX2
| Brand | Honda Engines |
| Manufacturer's Warranty | 3 year limited warranty |
| Ship Weight | 40.0 lbs |
| Engine Displacement | 196 cc |
| Engine Type | GX Series OHV commercial-duty |
| Net Power Output | 5.5 HP |
| Start Type | Recoil |
| Shaft Diameter | 3/4 in |
| Shaft Length | 2.43 in |
| Net Torque | 9.1 ft-lbs. |
| Shaft Output | Horizontal |
| Shaft Keyway | 0.18 in |
| Shaft Rotation (From PTO Shaft Side) | Counterclockwise |
| Crankshaft | Q-type |
| PTO Height | 4.17 in |
| Cylinders (qty.) | 1 |
| Cylinder Bore | Cast iron |
| Compression Ratio | 8.5:1 |
| Cooling System | Air cooled |
| Bore | 2.7 in |
| Stroke | 2.1 in |
| Air Cleaner Type | Dual element |
| Fuel Tank | Yes |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 3.3 qt |
| Oil Capacity | 0.63 qt |
| Low Oil Alert | Yes |
| Low Oil Shutdown | Yes |
| Lubrication System | Splash |
| Ignition System | Electronic |
| Governor System | Centrifugal mechanical |
| Carburetor | Float |
| Throttle Control | Remote (cable) |
| Choke Control | Manual |
| Max. RPM | 3,600 |
| Muffler Included | Yes |
| Auto Compression Release | Yes |
| CARB Approval | Yes |
| Bolt Circle | 3.625 in |
| Mounting Base Length | 6.375 in |
| Mounting Base Width | 3.15 to 3.34 in |
| Dimensions L x W x H (in.) | 12.62 x 14.81 x 13.18 in |
