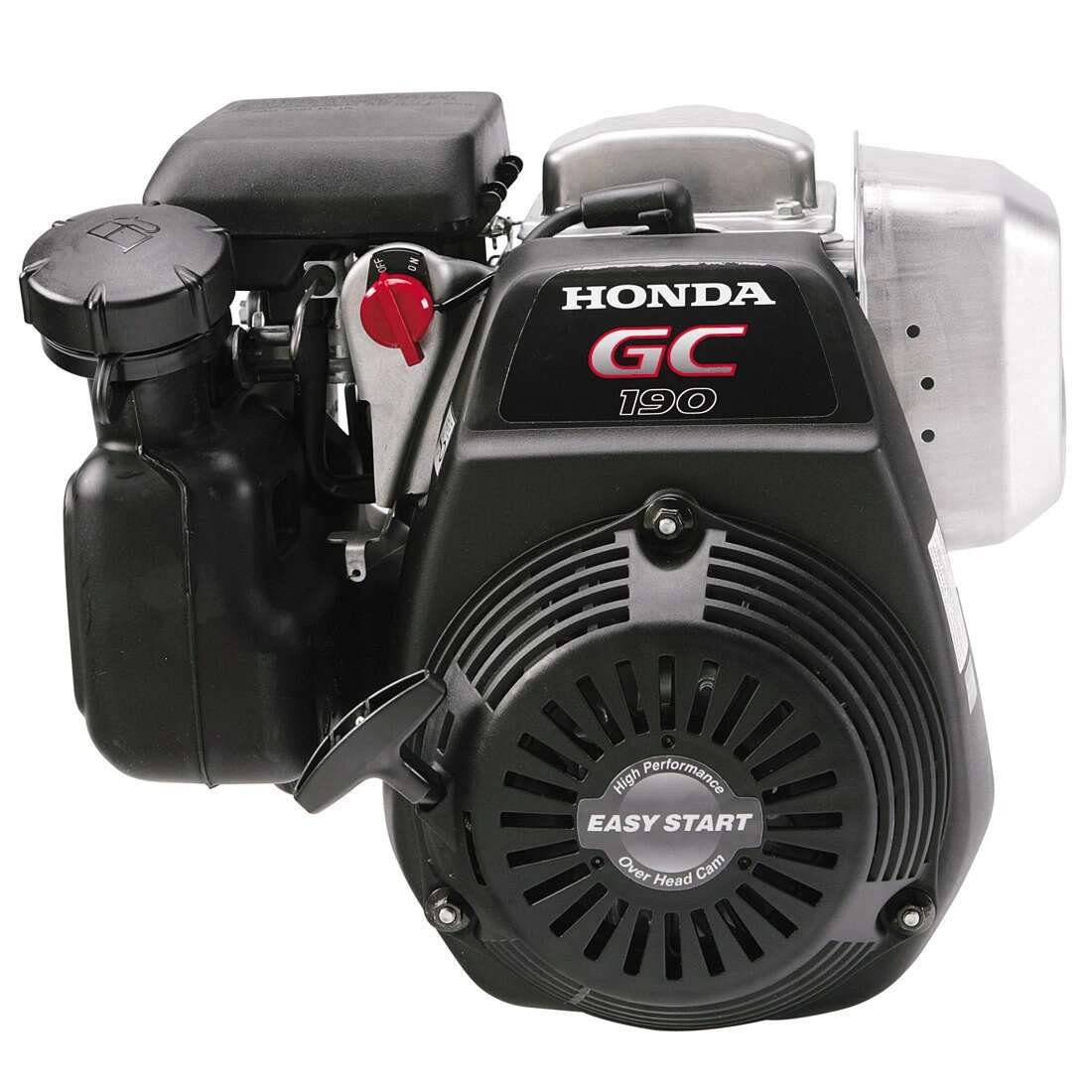

Honda GC190 – 6.5HP Horizontal Engine
In Stock
$173.00
In Stock
Upgrade your residential pressure washer with the 6.5HP 190cc Honda GC190 Engine, featuring a horizontal shaft OHC design for quiet, lightweight, and fuel-efficient backyard performance.
- Output: 6.5 Gross HP 190cc
- Engine: Innovative Overhead Cam Layout
- Start: Easy Pull Manual Recoil
- Application: Residential Grade Utility Power
- Warranty: Two Year Limited Warranty
Description
Honda GC190 QHGF Engine Replaces GC190 QHAF
The Honda GC190 QHGF engine is a compact, lightweight 4-stroke, air-cooled engine designed to replace the previous Honda GC190 QHAF model. It is ideal for light-duty applications like small lawn equipment, pressure washers, and other residential or light commercial machinery.Engine DescriptionEngine Model: Honda GC190 QHGFType: 4-stroke, single-cylinder, overhead valve (OHV), air-cooledDisplacement: 187ccBore x Stroke: 68mm x 54mmCompression Ratio: 8.5:1Ignition System: Transistorized ignition (TCI)Fuel System: Diaphragm-type carburetor with single chokeLubrication System: Splash lubricationCooling System: Air-cooledPerformance SpecificationsMaximum Output: 5.0 HP (3.7 kW) @ 3,600 RPMMaximum Torque: 12.3 Nm @ 2,500 RPMFuel Consumption: Approx. 1.2 L/h (at 3,600 RPM)Fuel Tank Capacity: 3.1 litersOil Capacity: 0.6 litersRecommended Fuel: Unleaded gasoline (87 octane or higher)Starting SystemStarting System: Recoil starter (manual pull-start)Easy-start system: Simplified design for easy pulling and startingShaft and MountingShaft Type: Horizontal shaft with keyway for easy attachment to machineryShaft Diameter: 3/4 inch (19.05 mm)Shaft Length: 2.4 inches (60 mm)Keyway: Yes, for secure attachment of accessoriesDimensions and WeightDimensions (L x W x H): 318mm x 358mm x 318mmDry Weight: 15.4 kg (34 lbs)
