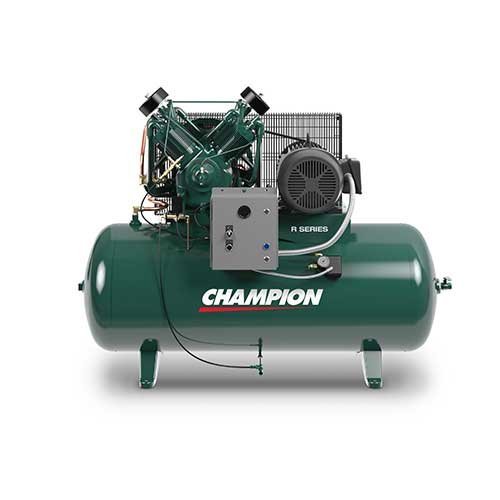

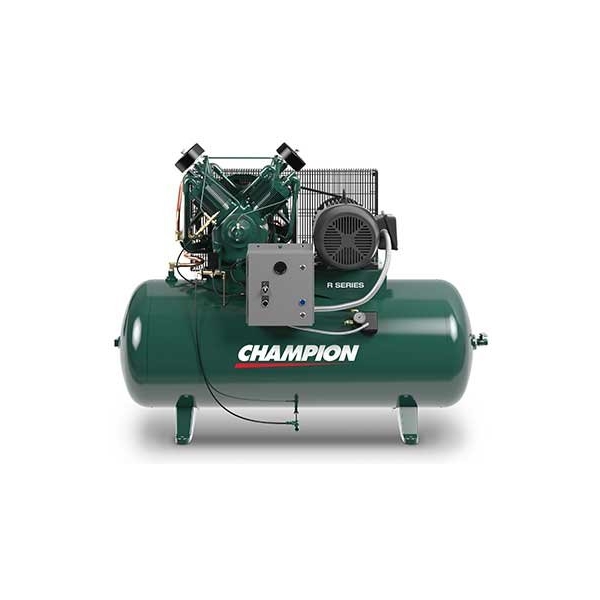

Champion HR20-12 Air Compressor – 20HP R-Series

Champion HR20-12 R-Series 20Hp Compressor: High-Efficiency Duplex Industrial Powerhouse

The Champion HR20-12 R-Series 20Hp Compressor is a heavy-duty industrial duplex system engineered for mission-critical facilities that require absolute air reliability and massive volumetric output. Featuring two independent 10-HP R-Series pumps mounted on a 120-gallon horizontal ASME receiver, this duplex infrastructure eliminates the risk of total production downtime. By integrating this R-Series flagship into your facility through our platform, you secure a fail-safe pneumatic supply that utilizes dual motors to deliver consistent high-pressure air for automated manufacturing, large-scale fabrication, and heavy industrial processes.

The technical superiority of the HR20-12 is defined by its legendary R-Series pumps, which utilize a positive displacement oil pump to force filtered lubrication directly to every critical bearing. As a premier solution in our heavy-duty industrial air compressor collection, this pressure-lubricated titan delivers a staggering combined output of 68.8 CFM at 175 PSI. Equipped with an automatic alternator, the system intelligently balances the workload between both 10-HP motors, ensuring even component wear and maintaining peak thermal efficiency even during continuous 24/7 multi-shift operations.

Technical Engineering Specifications

• Configuration: Duplex System (Two Independent 10-HP Motor/Pump Groups).
• Pump Design: R-Series Two-Stage Solid Cast Iron with Pressure Lubrication.
• Combined Air Delivery: 68.8 CFM @ 175 PSI.
• Tank Capacity: 120-Gallon Horizontal ASME-certified receiver.
• Lubrication System: Automotive-style oil pump with spin-on oil filters.
• Control Architecture: Automatic Alternator for workload rotation and redundancy.
• Motor Specification: High-efficiency NEMA-rated 3-Phase industrial motors.
• Valving: High-flow stainless steel disc valves for extreme durability.
• Warranty: Industry-leading factory-backed pump protection.

“Implementing the Champion HR20-12 was the best insurance policy for our production line. The duplex 120-gallon setup provides such a massive air buffer that our pressure never fluctuates, and the pressure lubrication keeps the pumps running cool even in our high-ambient temperature shop. It’s the benchmark for industrial reliability.”

Advanced Durability & Lifecycle Architecture

The Champion HR20-12 is meticulously engineered to defeat internal friction fatigue by utilizing its proprietary pressure-fed lubrication system. Unlike standard splash-lubricated units, this high-efficiency duplex system forces clean, filtered oil through the crankshaft to all bearing surfaces, preventing “dry starts” and significantly extending the pump’s operational life. The solid cast-iron construction and deep-finned heads optimize heat dissipation, while the automatic alternator ensures that no single pump is overworked. This strategic focus on mechanical redundancy and thermal management guarantees a maximum ROI for your facility’s compressed air infrastructure.

Secure your facility’s uptime with the Champion HR20-12 R-Series 20Hp Compressor and experience the peace of mind that only R-Series duplex technology can provide. Order from Muldepot.com today for specialized industrial shipping and technical consultation. Command your production with Champion power.
