Champion HR20-24 Air Compressor – 20HP R-Series

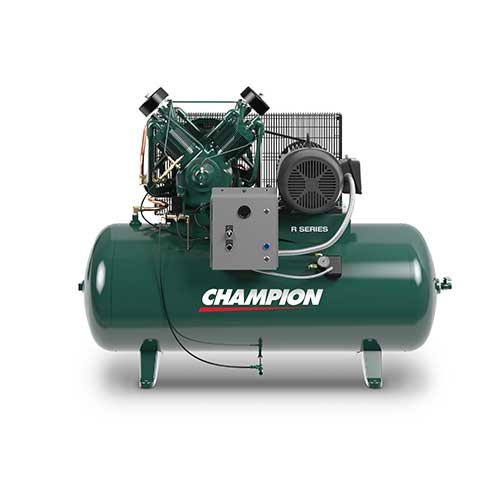

Champion HR20-24 R-Series: 20-HP Pressure-Lubricated Titan with 240-Gallon Storage

The Champion HR20-24 R-Series is a premier heavy-duty air compressor engineered for large-scale industrial operations that demand massive air volumes and uncompromising reliability. Featuring a high-torque 20-HP industrial motor and a legendary pressure-lubricated pump, this unit is mounted on a massive 240-gallon horizontal ASME-coded tank. By integrating this R-Series powerhouse into your facility through our platform, you secure a fail-safe compressed air infrastructure capable of maintaining absolute pressure stability for continuous 24/7 manufacturing schedules and high-demand pneumatic tool arrays.The technical core of the HR20-24 lies in its R-Series pump, which delivers an impressive 70.1 CFM at 175 PSI. As a cornerstone of our heavy-duty industrial air compressor collection, this model utilizes a positive displacement oil pump that forces filtered lubrication directly to every critical bearing. This specialized pressure lubrication technology allows the unit to run cooler and longer than standard splash-lubricated models. The 240-gallon receiver tank acts as a monumental buffer, providing torque stability and effectively reducing motor startup wear, ensuring a consistent high-pressure air stream for large-scale sandblasting, CNC machining, and automated assembly lines.

Champion HR20-24 R-Series Technical Engineering Specifications

• Motor Horsepower: 20-HP High-Efficiency Industrial NEMA Motor.
• Pump Design: R-Series Two-Stage Solid Cast Iron with Pressure Lubrication.
• Air Delivery: Massive 70.1 CFM @ 175 PSI.
• Tank Configuration: 240-Gallon Horizontal ASME-certified receiver.
• Lubrication System: Positive displacement oil pump with automotive-style filtration.
• Electrical Phase: 230/460V Three-Phase industrial grade.
• Cooling System: Deep-finned intercoolers and copper discharge tubes for rapid heat dissipation.
• Valving System: High-flow stainless steel valves for peak volumetric efficiency.
• Safety Features: Fully enclosed high-flow belt guard and ASME safety valves.
• Warranty: Comprehensive 5-Year factory-backed pump protection.

“The Champion HR20-24 has been a game-changer for our structural steel fabrication shop. The 70.1 CFM output handles our large sandblasting cabinets and multiple pneumatic grinders without ever dropping below 150 PSI. We specifically chose the R-Series for the pressure lubrication, and it shows—the pump stays incredibly cool even during double shifts. The 240-gallon tank is massive, but it provides the steady air we need for our precision work.”

Advanced Durability & Lifecycle Engineering

In the most punishing industrial environments, the Champion HR20-24 excels by utilizing solid cast-iron construction to eliminate thermal warping and mechanical fatigue. The proprietary pressure lubrication system prevents premature bearing fatigue by ensuring clean, filtered oil reaches all moving parts, regardless of workload intensity. The two-stage compression process significantly lowers discharge temperatures, which drastically reduces moisture-driven corrosion within the tank and your downstream air lines. This strategic focus on cooling and internal filtration ensures a long-term operational lifecycle and a superior ROI for high-volume manufacturing facilities.

Strategic Industry Use Cases

• Large-scale Metal Fabrication and Sandblasting facilities.
• Industrial CNC Machining Centers with multi-bay tool arrays.
• Heavy Equipment Manufacturing with continuous 24/7 production.
• Commercial Fleet Maintenance and Rail Hubs.
• Mining and Agricultural maintenance facilities requiring high-volume air.

Secure Your Industrial Air Infrastructure

The Champion HR20-24 R-Series represents the pinnacle of reciprocating air technology, providing the power and storage capacity required for the world’s most demanding shops. By investing in a 20-HP pressure-lubricated system with a 240-gallon tank, you ensure your business is equipped for growth and maximum uptime. Order your Champion HR20-24 from Muldepot.com today to benefit from our nationwide industrial shipping and specialized technical support. Power your production with the legendary reliability of the Champion R-Series.
