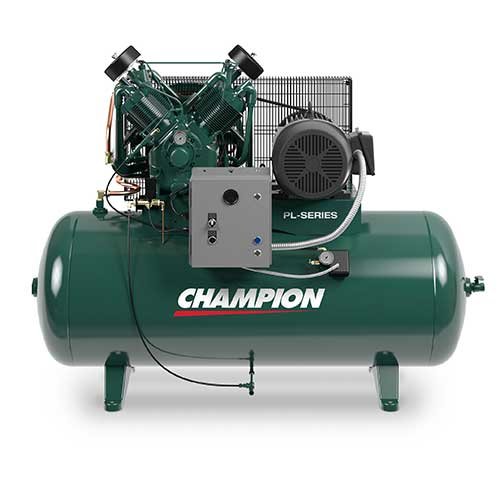

Champion HPL5D-12 Air Compressor – 5HP PL-Series

Champion HPL5D-12 PL-Series 5Hp Compressor: Redundant Duplex Power with Pressure Lubrication

The Champion HPL5D-12 PL-Series 5Hp Compressor is a high-performance industrial air system engineered for facilities that require fail-safe pneumatic reliability without compromising on tank volume. Featuring two independent 2.5-HP PL-Series pumps mounted on a massive 120-gallon horizontal ASME receiver, this duplex infrastructure ensures that your production line remains active even during maintenance. By integrating this pressure-lubricated duplex unit through our platform, you secure maximum operational uptime; if one pump requires service, the secondary unit continues to support your critical air demands, preventing costly shop downtime.

The technical foundation of the HPL5D-12 lies in its legendary PL-Series pumps, which utilize a positive displacement oil pump to force filtered lubrication directly to every internal bearing. As a premier performer in our heavy-duty industrial air compressor collection, this 5-HP pressure-lubricated duplex system delivers a combined 17.2 CFM at 175 PSI. Equipped with an automatic alternator, the system intelligently rotates the workload between both motors, maintaining peak thermal efficiency and preventing localized component fatigue during demanding multi-shift operations.

Technical Engineering Specifications

• Configuration: Duplex System (Two Independent 2.5-HP Pump/Motor Groups).
• Pump Technology: PL-Series Two-Stage Cast Iron with Pressure Lubrication.
• Combined Air Delivery: 17.2 CFM @ 175 PSI.
• Tank Capacity: 120-Gallon Horizontal ASME-certified receiver.
• Lubrication: Automotive-style oil pump with spin-on oil filtration.
• Control System: Automatic Alternator for balanced pump workload.
• Motor Spec: Dual High-Efficiency NEMA-rated industrial motors.
• Valving: High-flow stainless steel disc valves for 100% duty cycle.
• Warranty: Industry-leading factory-backed pump protection.

“The HPL5D-12 duplex setup has been a lifesaver for our fabrication shop. The 120-gallon tank provides a massive buffer, and the pressure lubrication makes the unit remarkably quiet and cool. Knowing we have two independent pumps gives us incredible peace of mind during our busiest shifts.”

Advanced Durability & Lifecycle Architecture

The Champion HPL5D-12 is meticulously engineered to eliminate mechanical friction wear by utilizing its proprietary pressure-fed lubrication system. Unlike standard splash-lubricated units, this 5-HP duplex reciprocating system forces clean, filtered oil through the crankshaft to prevent “dry starts,” even in cold environments. The following features ensure maximum operational life:

• Pressure-Fed Oil Pump: Delivers constant lubrication to the crankshaft and connecting rod bearings under all load conditions.
• Automatic Alternator: Switches the lead pump on every cycle to ensure even wear across both 2.5-HP motors.
• 120-Gallon ASME Tank: Provides a large air reserve that significantly reduces motor cycling frequency and energy consumption.
• Spin-On Oil Filter: Simplifies maintenance while protecting internal components from abrasive debris.
• Solid Cast-Iron Pumps: Built for 100% industrial duty cycles and superior heat dissipation.

Empower your facility with the Champion HPL5D-12 PL-Series 5Hp Compressor and secure the reliability that only a pressure-lubricated duplex can provide. Order from Muldepot.com today for specialized industrial shipping and expert technical support. Protect your production with the strength of Champion.
