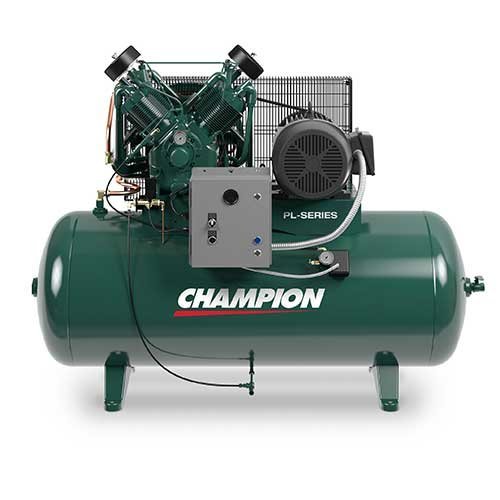

Champion HPL7D-12 Air Compressor – 7.5HP PL-Series

Champion HPL7D-12 7.5HP 120-Gallon Duplex Air Compressor with PL-Series Pressure Lubrication

The Champion HPL7D-12 Air Compressor is a masterclass in industrial redundancy, combining two high-performance pumps on a single 120-gallon horizontal receiver. This 7.5HP duplex configuration is engineered for facilities that require a rock-solid air supply but lack the high-amperage electrical service needed for larger 15HP or 20HP units. By utilizing dual motors, the HPL7D-12 ensures that your facility maintains operational uptime, even during scheduled maintenance or if one pump requires service.What defines the HPL7D-12 is the integration of Champion’s legendary PL-Series pressure-lubricated pumps. Unlike standard splash-lubricated compressors, these units feature a positive displacement oil pump that forces lubricant directly to the crankshaft and connecting rod bearings. This advanced thermal management allows the compressor to operate in high-ambient temperatures and dusty environments where lesser machines often fail. The result is a heavy-duty industrial asset built for decades of reliable service.

Champion HPL7D-12 Industrial Performance Breakdown

• Horsepower: 7.5 HP combined output from two high-efficiency motors.
• Air Volume: Optimized CFM delivery designed for sustained pneumatic demand.
• Tank Capacity: 120-Gallon Horizontal ASME certified tank for reliable air reserves.
• Lubrication: Positive displacement oil pump for pressurized bearing protection.
• Duty Cycle: Rated for 100-Percent continuous industrial duty operation.
• Start Protection: Features dual pre-wired premium magnetic starters.
• Oil Filtration: Spin-on automotive-style oil filter for superior internal cleanliness.
• Valving System: Stainless steel disc-type valves for maximum volumetric efficiency.

To be honest, our technical crew at MulDepot.com considers the HPL7D-12 the perfect “safety net” for precision shops. Most people look at the horsepower first, but the real winner here is the 120-gallon tank combined with pressure lubrication—it keeps your air tools running at a consistent pressure without the thermal stress of a single-pump system. If your production requirements grow, you can easily find larger configurations in our industrial air compressors section to match your expanding CFM needs.

Engineered for Redundancy and Reliability

The HPL7D-12 includes an automatic lead/lag alternating control system as standard. This ensures that the workload is shared equally between both pumps, effectively doubling the lifespan of the unit compared to a simplex model. This focus on long-term value is why our professional industrial equipment store recommends the PL-Series for mission-critical applications where air loss equals lost revenue.

• Cast Iron Construction: Dominates vibration and promotes cooler operation.
• Tapered Roller Bearings: Built to handle the high axial loads of 24/7 manufacturing.
• Gasketless Head Design: Eliminates common leaks found in commercial-grade units.
• Centrifugal Unloader: Ensures loadless motor starts for energy efficiency and motor longevity.

Ideal Applications for the HPL7D-12

• Medium-sized automotive service centers running multiple bays and air tools.
• Precision fabrication shops requiring a stable, high-quality air supply.
• Laboratories and medical manufacturing facilities where uptime is non-negotiable.
• Small industrial automation lines that rely on consistent pneumatic pressure.

The Champion HPL7D-12 isn’t just a tool; it’s a strategic investment in your shop’s efficiency. With its pressurized oiling system and heavy-duty duplex design, it provides the peace of mind that your air supply will be there when you need it most. Contact us today for electrical compatibility and freight shipping options for this 7.5HP industrial powerhouse.
