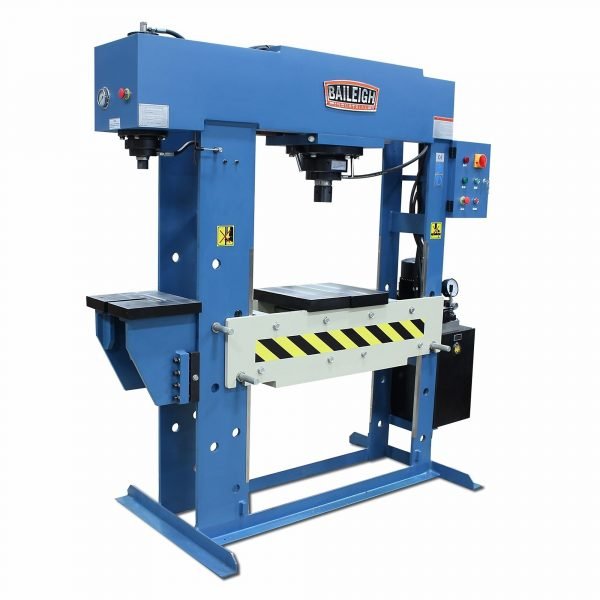

Baileigh HSP-60M-C 60/15 Ton Hydraulic H-Frame Press – 11.5in Stroke
$7,158.00
In Stock
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
If you’ve outgrown your pneumatic press, this hydraulic workshop press offers gives you the extra power of a 5.25 hp motor and the rigid accuracy of a fully-welded heavy steel plate frame. Another plus of the HSP-60M-C is the abilty to use a second 24 ton station with an open C-frame design. Both presses come in one compact design.
What’s Included
- (1) 60/15T Hydraul H-Frame Press
| Item# | 4690336 |
| Brand | Baileigh |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 2960.0 lbs |
| Press Type | Hydraulic |
| Max. Pressure | 60 Tons |
| Stroke Length | 7.5 in |
| Working Width | 41.25 in |
| Product Weight | 2960.0000 lb |
| Dimensions L x W x H (in.) | 96.0 x 48.0 x 89.0 in |
Baileigh HSP-60M-C 60/15 Ton Hydraulic H-Frame Press Technical Specifications
| Brand | Baileigh |
|---|---|
| Full Model SKU | HSP-60M-C |
| Country of Origin | Taiwan |
| Continuous Force Capacity | 60 Tons |
| Power Source | Electric-Hydraulic |
| Cylinder Stroke | 292 mm (11.5 in) |
| Working Distance / Bed Opening | 889 mm (35 in) Max. |
| Bed Width / Work Width | 813 mm (32 in) |
| Pump Type | Two-Speed Pump |
| Cylinder Movement | Sliding Head |
| Winch System | Manual Winch |
| Standard Accessories | Pressure Gauge, V-Blocks |
| Overall Dimensions | 1270 x 889 x 2108 mm |
| Net Weight | 560 kg |
| Application | Commercial Machine Shops, Bearing Pressing, and Forming |
