Vestil BTA-20006666 20K Aluminum Dockboard (66in. Wide x 66in. Long)
In Stock
$2,284.00
In Stock
Vestil BTA-20006666 20K Aluminum Dockboard provides a 20,000lb capacity in a symmetrical 66-inch square format, ideal for balanced heavy loading.
- Professional 20,000lb Rating: Robust construction supports the weight of standard and heavy-duty forklifts.
- Balanced 66″ x 66″ Size: Provides a square, stable footprint for standard dock-to-truck gaps in heavy industries.
- Yellow Safety Curbs: Improves awareness of the board edges and prevents lateral equipment runoff.
- Structural Locking Legs: Essential feature to keep the bridge secure during high-intensity loading cycles.
- Maintenance-Free Aluminum: Resists chemical damage and rust, ideal for high-traffic industrial zones.
Description

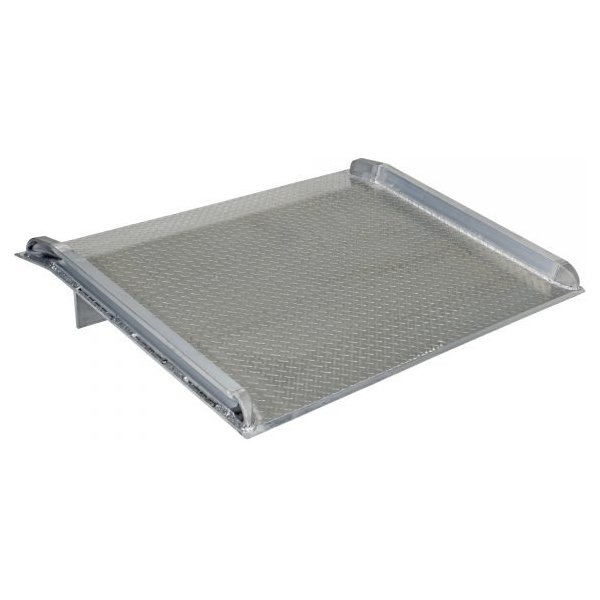

The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbss prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at least four times the lifting capacity of fork truck. The width of the dockboard should be at least 15 (in.) wider than the load or equipment passing between the curbss. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.
What’s Included
- (1) Vestil Aluminum Dockboard BTA Series with both aluminum treadplate and curbs. With Overall Dimensions of 66 X 66 and usable dimenions of 59-3/4 X 66. This dockboard is rated at a 20000 lbs. capacity.
| Item# | 4222807 |
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 271.0 lbs |
| Capacity | 20,000 lb |
| Ramp Length | 66 in |
| Ramp Width | 66 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.625 in |
| Left Leg Height | 12 in |
| Right Leg Height | 14 in |
| Height Difference | 8 in |
| Usable Ramp Length | 66 in |
| Usable Ramp Width | 59.75 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 271.0000 lb |
| Dimensions L x W x H (in.) | 66.0 x 66.0 x 15.625 in |
