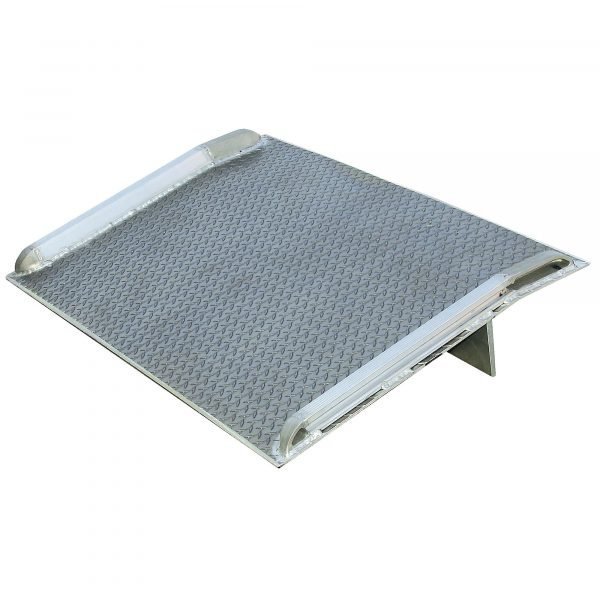

Vestil BTA-07008472 7K Aluminum Dockboard (84in. Wide x 72in. Long)
Vestil BTA-07008472 7K Aluminum Dockboard delivers a 7,000lb capacity with an extra-wide 84-inch width and 72-inch length for maximum reach and space.
- Reliable 7,000lb Capacity: Optimized for lighter-weight material handling equipment and palletised freight.
- Extra-Wide 84″ Path: Offers maximum maneuverability for wide-track equipment and oversized loads.
- Long 72″ Reach: Provides a shallow incline for docks with significant height differentials to the trailer.
- Safety Side Curbs: Painted yellow to prevent steering errors and increase the structural integrity.
- Locking Safety Legs: Keeps the board securely in place between the dock and the trailer.
Description
The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbss prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at least four times the lifting capacity of fork truck. The width of the dockboard should be at least 15 (in.) wider than the load or equipment passing between the curbss. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.
What’s Included
- (1) Vestil Aluminum Dockboard BTA Series with both aluminum treadplate and curbs. With Overall Dimensions of 84 X 72 and usable dimenions of 79-1/2 X 72. This dockboard is rated at a 7000 lbs. capacity.
| Item# | 4223068 |
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 263.0 lbs |
| Capacity | 7,000 lb |
| Ramp Length | 72 in |
| Ramp Width | 84 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.5 in |
| Left Leg Height | 12 in |
| Right Leg Height | 14 in |
| Height Difference | 8.5 in |
| Usable Ramp Length | 72 in |
| Usable Ramp Width | 79.5 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 263.0000 lb |
| Dimensions L x W x H (in.) | 72.0 x 84.0 x 16.75 in |
