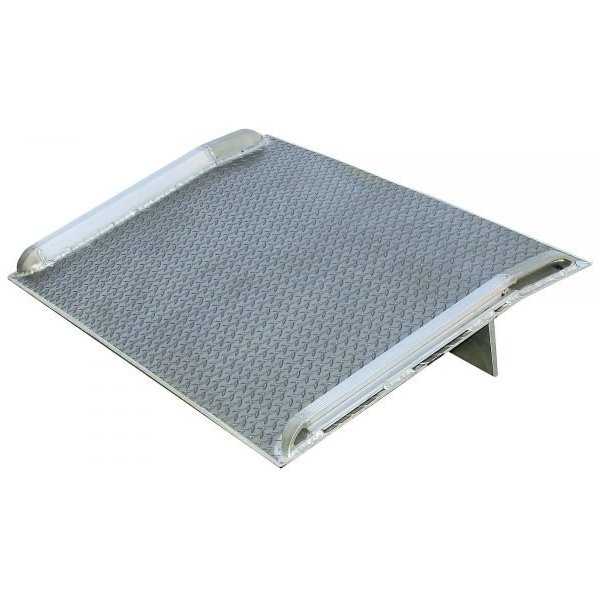

Vestil BTA-07007866 7K Aluminum Dockboard (78in. Wide x 66in. Long)
Vestil BTA-07007866 7K Aluminum Dockboard delivers a 7,000lb capacity in a 78-inch wide by 66-inch long configuration, a versatile high-traffic choice.
- Heavy-Duty 7,000lb Rating: Supports the weight requirements of standard distribution centers and warehouses.
- Wide 78″ Surface: Accommodates standard trailers with ease while providing ample wheel clearance.
- Integrated Locking Legs: Keeps the board securely anchored to the dock for maximum safety.
- Diamond Plate Traction: Non-slip pattern ensures traction for wheels and personnel.
- Beveled Transitions: Designed for smooth wheel roll-over to protect fragile loads and operators.
Description
The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbss prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at least four times the lifting capacity of fork truck. The width of the dockboard should be at least 15 (in.) wider than the load or equipment passing between the curbss. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.
What’s Included
- (1) Vestil Aluminum Dockboard BTA Series with both aluminum treadplate and curbs. With Overall Dimensions of 78 X 66 and usable dimenions of 73-1/2 X 66. This dockboard is rated at a 7000 lbs. capacity.
| Item# | 4223922 |
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 231.0 lbs |
| Capacity | 7,000 lb |
| Ramp Length | 66 in |
| Ramp Width | 78 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.5 in |
| Left Leg Height | 12 in |
| Right Leg Height | 14 in |
| Height Difference | 8 in |
| Usable Ramp Length | 66 in |
| Usable Ramp Width | 73.5 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 231.0000 lb |
| Dimensions L x W x H (in.) | 66.0 x 78.0 x 15.75 in |
