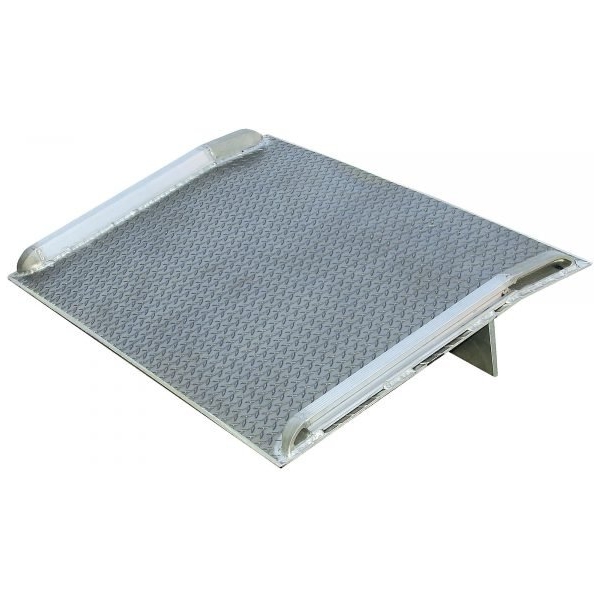

Vestil BTA-06008466 6K Aluminum Dockboard (84in. Wide x 66in. Long)
Vestil BTA-06008466 6K Aluminum Dockboard provides a 6,000lb capacity in an extra-wide 84-inch by 66-inch format, ideal for maneuvering wide loads.
- Extra-Wide 84″ Surface: Superior width allows for easier turning and maneuvering of wide-track pallet equipment.
- Reliable 6,000lb Capacity: High-strength aluminum construction handles standard warehouse inventory.
- Beveled Entry Plates: Ensures a smooth roll-over transition for wheels, protecting both cargo and operator.
- Diamond Plate Traction: Non-slip surface ensures maximum grip in various weather conditions.
- Zinc-Plated Locking Legs: Durable hardware prevents the board from shifting during use.
Description
The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbss prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at least four times the lifting capacity of fork truck. The width of the dockboard should be at least 15 (in.) wider than the load or equipment passing between the curbss. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.
What’s Included
- (1) Vestil Aluminum Dockboard BTA Series with both aluminum treadplate and curbs. With Overall Dimensions of 84 X 66 and usable dimenions of 79-1/2 X 66. This dockboard is rated at a 6000 lbs. capacity.
| Item# | 4223703 |
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 248.0 lbs |
| Capacity | 6,000 lb |
| Ramp Length | 66 in |
| Ramp Width | 84 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.375 in |
| Left Leg Height | 12 in |
| Right Leg Height | 14 in |
| Height Difference | 8 in |
| Usable Ramp Length | 66 in |
| Usable Ramp Width | 79.5 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 248.0000 lb |
| Dimensions L x W x H (in.) | 66.0 x 84.0 x 15.75 in |
