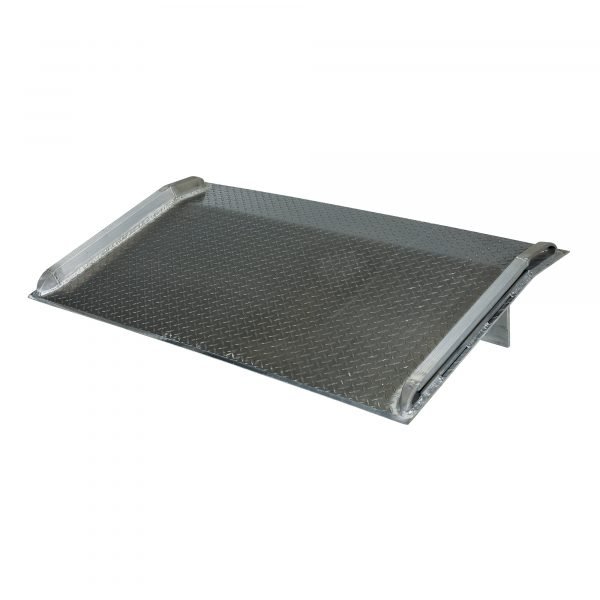

Vestil BTA-05005478 5K Aluminum Dockboard (54in. Wide x 78in. Long)
In Stock
$783.00
In Stock
Vestil BTA-05005478 5K Aluminum Dockboard provides a 5,000lb capacity in a 54-inch wide by 78-inch long format for the narrowest high-reach docks.
- Robust 5,000lb Industrial Rating: High-strength aluminum handles standard warehouse machinery and freight.
- Narrow 54″ Width: Perfect for specialized delivery vehicle entries and compact dock doors.
- Safety Side Rails: Provides a safety barrier and increases the structural integrity of the bridge.
- Locking Safety Pins: Essential feature to keep the bridge secure and prevent sliding during entry.
- Beveled Edge Design: Protects wheels and prevents jarring of cargo during transport.
Description
The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbss prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at least four times the lifting capacity of fork truck. The width of the dockboard should be at least 15 (in.) wider than the load or equipment passing between the curbss. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.
What’s Included
- (1) Vestil Aluminum Dockboard BTA Series with both aluminum treadplate and curbs. With Overall Dimensions of 54 X 78 and usable dimenions of 49-1/2 X 78. This dockboard is rated at a 5000 lbs. capacity.
| Item# | 4221388 |
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 168.0 lbs |
| Capacity | 5,000 lb |
| Ramp Length | 78 in |
| Ramp Width | 54 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.313 in |
| Left Leg Height | 13 in |
| Right Leg Height | 15 in |
| Height Difference | 9 in |
| Usable Ramp Length | 78 in |
| Usable Ramp Width | 49.5 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 168.0000 lb |
| Dimensions L x W x H (in.) | 78.0 x 54.0 x 16.75 in |
