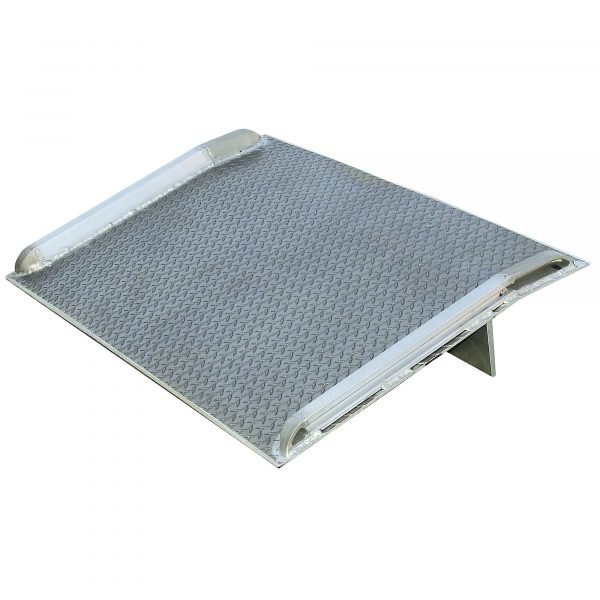

Vestil BTA-08006084 8,000 lbs Aluminum Dockboard (60 in W x 84 in L)
The Vestil BTA-08006084 is an extra-long, 8,000 lbs Aluminum Dockboard (60 in W x 84 in L), designed for superior reliability when bridging large gaps or navigating severe height differences between the dock and the trailer. This fixed dockboard provides a critical safety ramp for forklift operations. The Vestil BTA-08006084 guarantees structural integrity and safe, efficient cross-docking; explore our 9,000 lbs dockboards for slightly higher capacity.
Description
The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operat aions. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbss prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at a least four times the lifting capacity of fork truck. The width of the dockboard should be at a least 15 (in.) wider than the load or equipment passing between the curbss. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.
What’s Included
- (1) Vestil Aluminum Dockboard BTA Series with both aluminum treadplate and curbs. With Overall Dimensions of 60 X 84 and usable dimenions of 54-1/4 X 83-3/4. This dockboard is rated at a 8000 lbs. capacity.
| Item# | 4219587 |
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 205.0 lbs |
| Capacity | 8,000 lb |
| Ramp Length | 84 in |
| Ramp Width | 60 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.375 in |
| Left Leg Height | 14 in |
| Right Leg Height | 16 in |
| Height Difference | 10 in |
| Usable Ramp Length | 83.75 in |
| Usable Ramp Width | 54.25 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 201.0000 lb |
| Dimensions L x W x H (in.) | 84.0 x 60.0 x 19.625 in |
Vestil BTA-08006084 8,000 lbs Aluminum Dockboard (60 in W x 84 in L) Specs
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 205.0 lbs |
| Capacity | 8,000 lb |
| Ramp Length | 84 in |
| Ramp Width | 60 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.375 in |
| Left Leg Height | 14 in |
| Right Leg Height | 16 in |
| Height Difference | 10 in |
| Usable Ramp Length | 83.75 in |
| Usable Ramp Width | 54.25 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 201.0000 lb |
| Dimensions L x W x H (in.) | 84.0 x 60.0 x 19.625 in |
