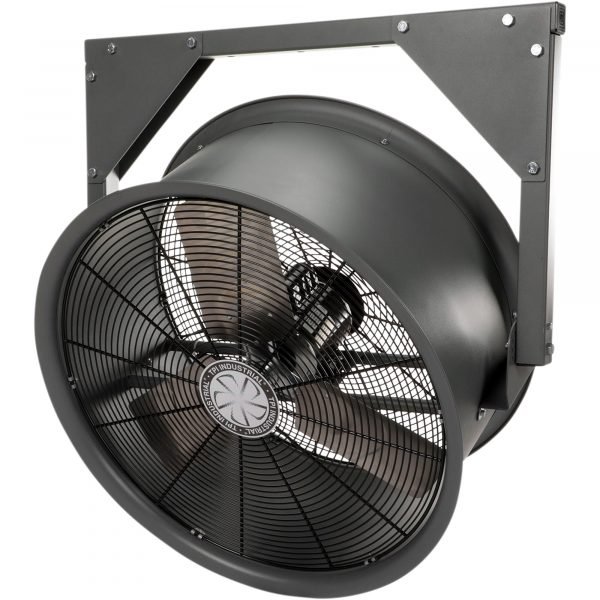

TPI HV30-480V3 High-Velocity Wall Mount Fan (30in, 9000 CFM, 480V 3-Phase)
The TPI HV30-480V3 High-Velocity Wall Mount Fan is a large, fixed-mount air mover for heavy industrial use. This 30in fan delivers 9000 CFM and utilizes efficient, reliable 480V 3-Phase power. The High-Velocity output provides powerful, consistent air circulation over large areas, while the Wall Mount design conserves floor space. The TPI HV30-480V3 High-Velocity fan is essential for cooling and ventilation in large factories and industrial facilities.
Description

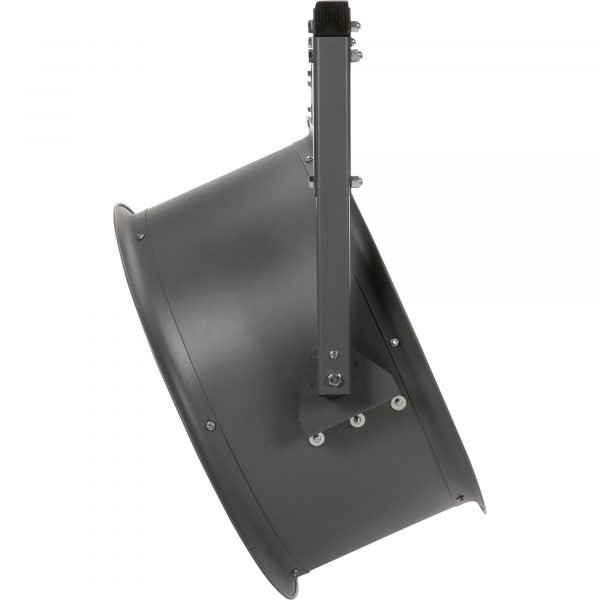

The TPI High Velocity, Wall-Mount, Commercial- Grade Fan is designed for rugged environments. It is ideal for warehouse, material handling, and high-shelf areas for directing high volumes of air flow down aisles, loading dock areas, conveyor systems, processing centers, workstations, jobsites, and many other types of industrial operations in tough environments. The housing is designed for all types of air circulating applications to provide directional, high velocity airflow.The built-in rotating design allows the supplied mounting bracket to pivot 120° in (9) adjustment settings at 15° variations. Front and rear spiral wound grills are OSHA approved and have a black powder-coated finish. Shipped fully assembled and ready for hard-wired connections. The Totally Enclosed Air-Over (TEAO) motor has a Class B rating, with automatic thermal protection and ball bearing design for harsh environments. Rated up to 115° F max ambient temperature.What’s Included
- (1) Fan
| Item# | 99733 |
| Brand | TPI |
| Manufacturer’s Warranty | 2 year commercial limited |
| Ship Weight | 95.0 lbs |
| Fan Diameter (in.) | 30 |
| Air Delivery (CFM) | 9,000 |
| Volts | 480 |
| Horsepower | 1 |
| Watts | 746 |
| Amps | 3.4/1.6 |
| Speeds (qty.) | 1 |
| Dimensions L x W x H (in.) | 16 x 38.9 x 39 in |
TPI HV30-480V3 High-Velocity Wall Mount Fan (30in, 9000 CFM, 480V 3-Phase) Specs
| Brand | TPI |
| Manufacturer’s Warranty | 2 year commercial limited |
| Ship Weight | 95.0 lbs |
| Fan Diameter (in.) | 30 |
| Air Delivery (CFM) | 9,000 |
| Volts | 480 |
| Horsepower | 1 |
| Watts | 746 |
| Amps | 3.4/1.6 |
| Speeds (qty.) | 1 |
| Dimensions L x W x H (in.) | 16 x 38.9 x 39 in |
