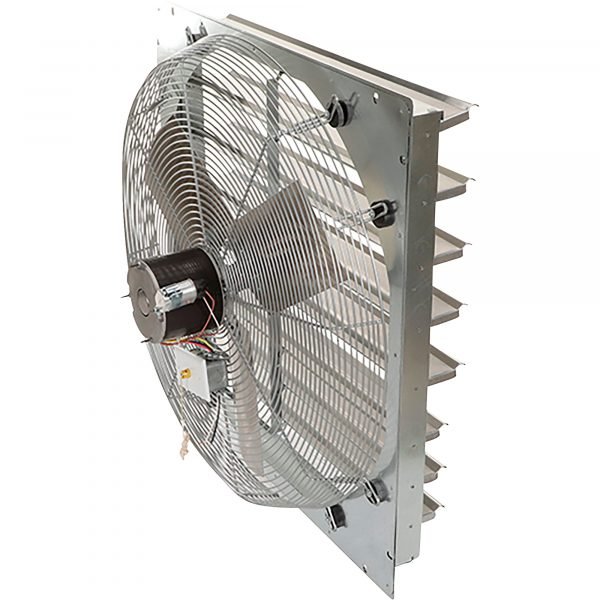

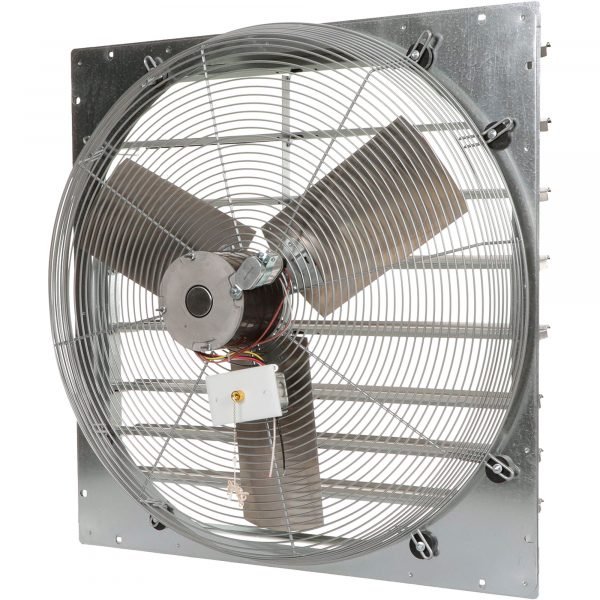

TPI CE-30-DS Direct Drive Exhaust Fan with Shutter (30in)
The TPI CE-30-DS Direct Drive Exhaust Fan is a reliable, integrated ventilation unit for industrial and agricultural buildings. This 30in fan features a Direct Drive motor for efficiency and includes an automatic Shutter to prevent back-draft and weather intrusion when inactive. The TPI CE-30-DS Direct Drive fan is a high-volume solution for general air exchange and temperature control.
Description
The TPI Shutter-Mounted Direct Drive Exhaust Fan is designed to exhaust stale air from rooms, barns, garages or small enclosed work areas. Can be installed from inside wall, eliminating need for external framing and shutter. Totally enclosed, 1 phase, 120V, permanently lubricated. For new or existing construction. Features pull chain switch, aluminum blades and steel spiral guards. Oversize shipping charge applies
What’s Included
- (1) 2-speed motor
- (1) Pull chain
- (1) Junction box for direct wiring
- (1) Blade set
- (1) Fan guard
- (1) Shutter housing
Product Manual A Product Manual B
| Item# | 255335 |
| Brand | TPI |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 54.0 lbs |
| Fan Diameter (in.) | 30 |
| Air Delivery (CFM) | 3,950/3,080 |
| Volts | 120 |
| Horsepower | 1/4 |
| Drive Type | Direct drive |
| Speeds (qty.) | 2 |
TPI CE-30-DS Direct Drive Exhaust Fan with Shutter (30in) Specs
| Brand | TPI |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 54.0 lbs |
| Fan Diameter (in.) | 30 |
| Air Delivery (CFM) | 3,950/3,080 |
| Volts | 120 |
| Horsepower | 1/4 |
| Drive Type | Direct drive |
| Speeds (qty.) | 2 |
