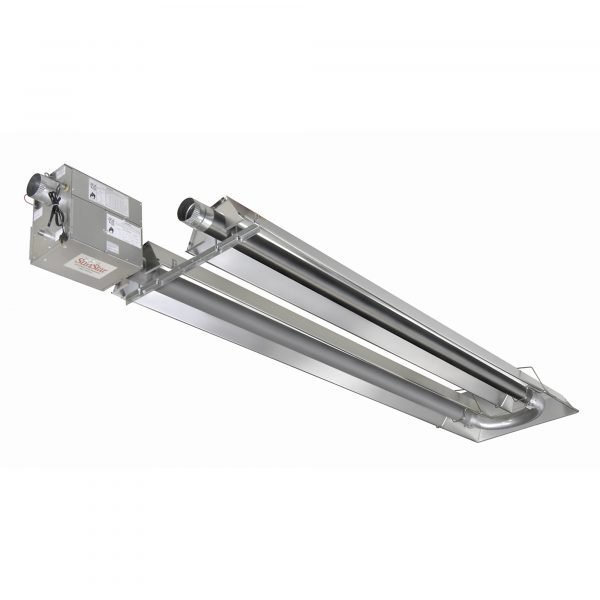

SunStar SPU50-30-TG-L5 Tough Guy U-Tube Positive Pressure Tube Heater 50K BTU
The SunStar SPU50-30-TG-L5 Tough Guy U-Tube Positive Pressure Tube Heater delivers 50,000 BTU, featuring the renowned durability of the Tough Guy series in a specialized 30-foot tube length for optimal radiant coverage in smaller spaces. The positive pressure system ensures maximum heat transfer efficiency, while the heavy-duty construction protects the unit from harsh commercial environments. Ideal for smaller service bays or residential garages, this heater provides focused, economical radiant heat. The SunStar SPU50-30-TG-L5 Tough heater offers a resilient, long-lasting solution with precise heat control and coverage tailored to the specific dimensions of your workspace.
Description
Offers fuel savings up to 50%. Tough Guy U-Tube heaters are ideal for high heat loss areas or spot heating. Positive pressure system pressurizes the combustion chamber. The emitter tubes are made of heat treated aluminized steel. All gas, electrical and flue connections are located at the same end of the heater. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 40ft. of ducting in fresh air or 40ft. sidewall venting capability. Blower is located inside the burner box. Ideal for applications where minimal noise (less than 60dB) is desired. Heavy duty permanently lubricated and ball bearing blower motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. External 24V thermostat connection or line voltage operation. Tough Guy Series is ideal for Car Washes, Greenhouses, Swimming Pools, Waste Water Treatment plants, Dairy Barns and other high humidity environments. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar’s Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater and the model that’s right for you, view the Heat Loss Estimating Chart for proper model and heater selection.
What’s Included
- (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors
| Item# | 4745261 |
| Brand | SunStar |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 186.0 lbs |
| Fuel Type | Propane |
| Heat Output | 50,000 Btu/hour |
| Heat Type | Infrared |
| Heating Capability | 500 ft² |
| Blower Included | Yes |
| Assembled Width | 31 in |
| Assembled Height | 12 in |
| Assembled Depth | 204 in |
| Thermostat Included | No |
| Volts | 120 |
| Amps | 2 |
| Product Weight | 148.8000 lb |
| Dimensions L x W x H (in.) | 204.0 x 31.0 x 8.0 in |
SunStar SPU50-30-TG-L5 Tough Guy U-Tube Heater Specs
| Brand | SunStar |
|---|---|
| Heat Output | 50,000 BTU/hr |
| Heating Capability | 500 sq. ft. |
| Fuel Type | Propane |
| Assembled Width | 31 in |
| Assembled Height | 12 in |
| Assembled Depth | 204 in |
| Positive Pressure System | Yes |
| 100% Gas Shut-off Safety Control | Yes |
| Diaphragm Air Switch Included | Yes |
| Heavy Duty Cast Iron Burner | Yes |
| Diagnostic Monitoring Light System | Yes |
| CSA Certified | Yes |
| What's Included | (1) Burner Package: Main Burner, Hardware, Emitter Tubes, Reflectors |
| Product Weight | 148.8 lb |
| Ship Weight | 186.0 lbs |
