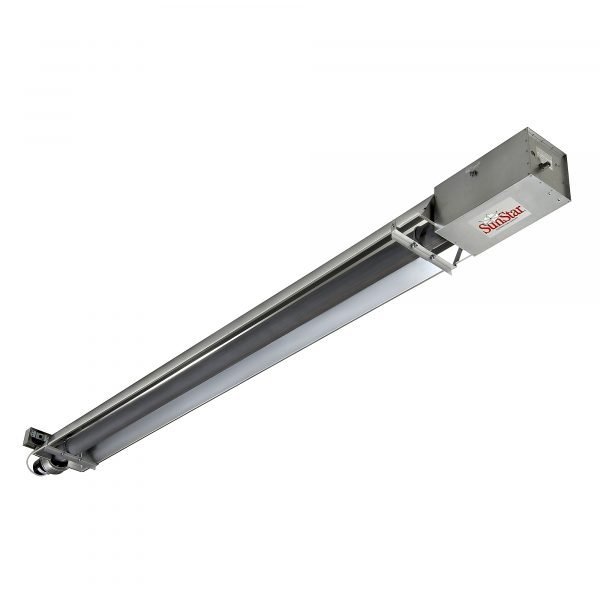

SunStar SIU175-50-TG-N5 Tough Guy U-Tube Vacuum Infrared Heater 175,000 BTU Natural Gas
The SunStar SIU175-50-TG-N5 Tough Guy U-Tube Vacuum Infrared Heater is a high-capacity powerhouse, delivering 175,000 BTU across an extended 50-foot U-tube, engineered for durable, comprehensive radiant coverage in the largest industrial facilities. This Natural Gas Tough Guy model utilizes a high-safety vacuum (negative pressure) system, which maximizes thermal transfer efficiency over the expansive tube length, ensuring uniform and economical heat distribution. Ideal for aircraft hangars and massive warehouses, the SunStar SIU175-50-TG-N5 Tough heater provides resilient, high-output, and long-lasting performance.
Description
Offers fuel savings up to 50%. Straight Tube heaters ideal for complete building heating. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50ft. of ducting in fresh air and 75ft. sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar’s Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater that’s right for you, view the Heat Loss Estimating Chart for proper model and heater selection.
What’s Included
- (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors
| Item# | 4745704 |
| Brand | SunStar |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 162.0 lbs |
| Fuel Type | Propane |
| Heat Output | 125,000 Btu/hour |
| Heat Type | Infrared |
| Heating Capability | 1,500 ft² |
| Blower Included | Yes |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 360 in |
| Thermostat Included | No |
| Volts | 120 |
| Amps | 3 |
| Product Weight | 129.6000 lb |
| Dimensions L x W x H (in.) | 360.0 x 13.0 x 8.0 in |
SunStar SIU175-50-TG-N5 Tough Guy Vacuum Infrared Heater Specs
| Brand | SunStar |
|---|---|
| Heat Output | 125,000 BTU/hr (Per Table) |
| Heating Capability | 1,500 sq. ft. |
| Fuel Type | Propane (Per Table) |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 360 in |
| Straight Tube Building Heating | Yes |
| Vacuum Combustion Chamber Efficiency | Yes |
| Direct Spark Ignition | Yes |
| 100% Gas Shut-off Safety Control | Yes |
| Sidewall Venting Capability (75ft) | Yes |
| Made in the USA | Yes |
| What's Included | (1) Burner Package: Main Burner, Hardware, Emitter Tubes, Reflectors |
| Product Weight | 129.6 lb |
| Ship Weight | 162.0 lbs |
Additional information
| Brands | SunStar |
|---|
