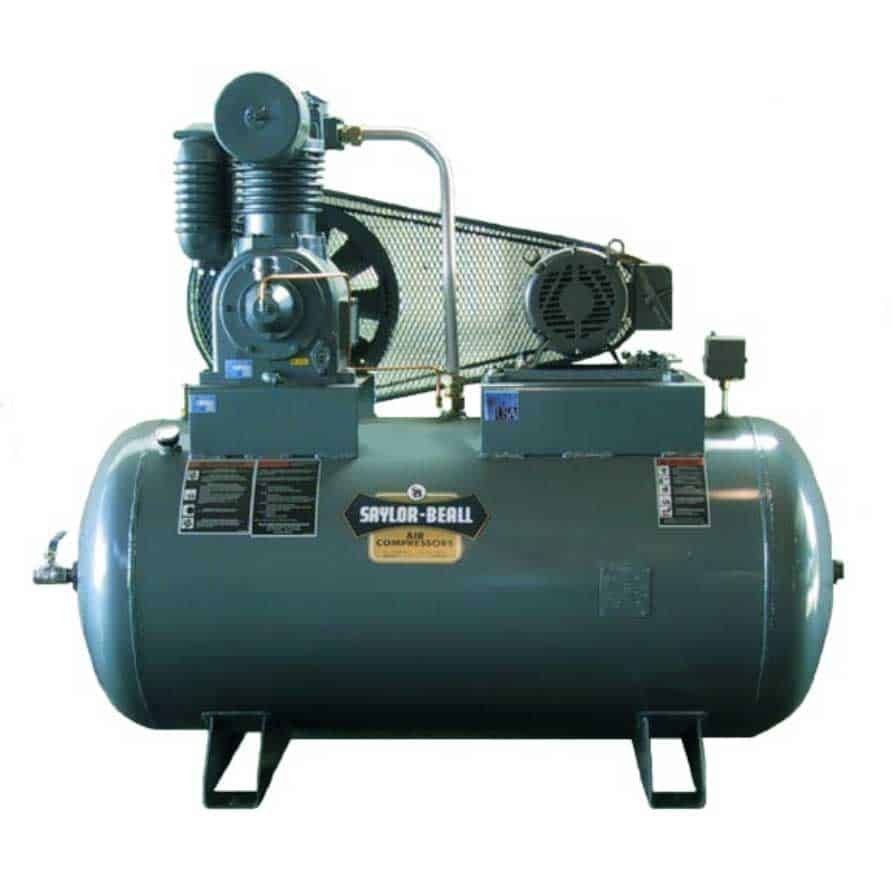

Saylor-Beall PL-451020 Air Compressor – 10HP 200Gal
Engineered to optimize high-volume assembly line workflows, this heavy-duty unit features a low-RPM cast iron pump design. The Saylor-Beall PL-451020 utilizes a 10HP three-phase electric motor to consistently output 38 CFM of pressurized air. Its substantial 200-gal ASME horizontal tank easily balances system pressures during rigorous industrial tool operations.
Description
Saylor-Beall PL-451020 | 34.4 CFM at 175 PSI Industrial Delivery Analysis
The Saylor-Beall PL-451020 is engineered for heavy-duty manufacturing and large-scale automotive operations. This pressure-lubricated system serves as a reliable stationary industrial plant for continuous high-volume pneumatic requirements.
Advanced pressure lubrication significantly improves the pump’s volumetric efficiency and extends maintenance intervals to 1000 hours. However, the lack of automatic low oil shutdown necessitates regular manual inspections to protect the pump from catastrophic friction damage.
Key Features: Saylor-Beall PL-451020
- Brand Saylor-Beall delivers high-performance USA-manufactured industrial air solutions.
- Model PL-451020 provides 34.4 SCFM at 175 PSI output.
- Powerful 10 HP motor supports demanding 3-phase electrical systems.
- Pressure lubricated pump ensures superior lubrication to all bearings.
- Massive 200-gallon tank minimizes motor cycling for longevity.
- Two-stage pump design maintains high efficiency at maximum pressure.
- Magnetic starter mounted for safe and reliable motor control.
- NEMA-rated electrical components ensure compliance with industrial safety standards.
- Cast iron construction offers excellent heat dissipation during use.
- Manufacturer offers a 1 Year Limited warranty on equipment.
Industrial Manufacturing Power Usage
Ideal for sandblasting, medium manufacturing, and large shop environments requiring high airflow. It integrates perfectly into industrial air compressors networks with minimal pressure drop. This model features a 1 Year Limited warranty for industrial peace of mind.
Saylor-Beall PL-451020 Air Compressor Specs
| Brand | Saylor-Beall |
| Full Model Code | PL-451020 |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Two-Stage) |
| Lubrication Style | Pressure Lubricated |
| Cooling System | Air Cooled |
| Motor Power | 10 HP |
| Max Working Pressure | 175 Psi |
| Free Air Delivery / Capacity | 34.4 CFM @ 175 Psi |
| Drive Type | Belt Drive (Electric) |
| Noise Level | 78-82 dB(A) |
| Outlet Connection Size | 3/4 Inch NPT |
| Tank Volume | 200 Gallons (Horizontal) |
| Dimension (LxWxH) | 1829 x 711 x 1372 mm |
| Net Weight | 445 kg |
| Control Panel Type | Magnetic Starter Mounted |
| Voltage/Phase/Frequency | 208-230-460V / 3 Phase / 60 Hz |
| Standard Warranty | 1 Year Limited |
| Maintenance Interval | 1000 Hours (Pressure Lubed) |
| Application | Medium industrial manufacturing, large automotive shops, and heavy-duty sandblasting operations. |
