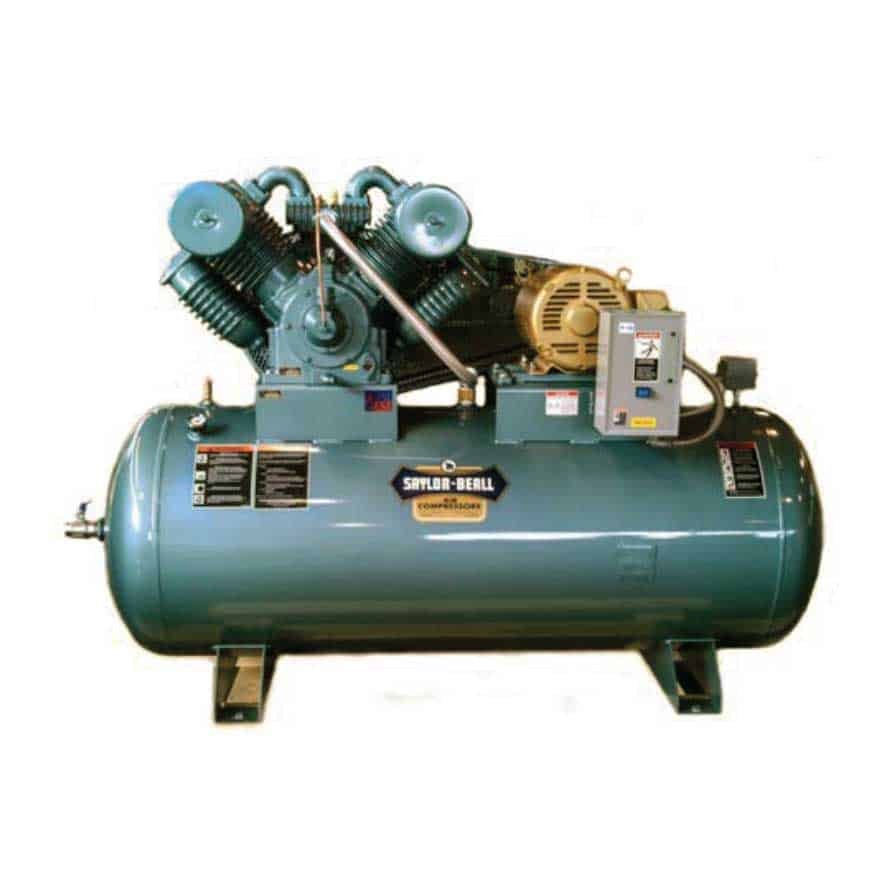

Saylor-Beall PL-93024 Air Compressor – 30HP 240Gal

Saylor-Beall PL-93024 | 106 CFM at 175 PSI Industrial Delivery Analysis

The Saylor-Beall PL-93024 is the highest-grade reciprocating solution engineered for massive air demands in heavy fabrication and continuous industrial operations. This 30 HP powerhouse functions as a robust stationary industrial plant, utilizing its enormous 240-gallon horizontal tank to buffer the industry’s most intensive pneumatic requirements. Built with precision-engineered American cast iron, it is specifically designed for facilities where sustained high-pressure airflow and maximum storage capacity are non-negotiable, providing the pneumatic volume necessary to operate multiple high-flow tools simultaneously without the risk of production-halting pressure fluctuations across the facility.

The integration of a sophisticated pressure lubrication system significantly improves the pump’s volumetric efficiency and allows for extended 1000-hour maintenance intervals even under extreme industrial loads. However, despite the inclusion of a pressure lube monitor, this unit lacks an automatic low oil shutdown; therefore, a technical warning is issued: regular manual oil audits are mandatory to protect the high-precision air-end. Proper maintenance is the primary defense against thermal instability during the heavy duty cycles common in manufacturing, protecting the internal bearing surfaces from friction-induced wear during continuous high-flow air compression cycles.

Key Features: Saylor-Beall PL-93024

• Brand Saylor-Beall represents the standard for USA-made high-capacity air solutions.
• Model PL-93024 provides a powerful 106 SCFM at 175 PSI.
• Robust 30 HP motor supports intensive 3-phase industrial electrical grids.
• Pressure lubricated pump ensures optimal oil flow to all bearings.
• Massive 240-gallon horizontal tank minimizes motor cycling to extend life.
• Two-stage pump design maintains peak efficiency at maximum pressure.
• Magnetic starter and pressure lube monitor ensure safe motor management.
• Large 1-1/2 inch NPT outlet accommodates high-flow industrial piping.
• Cast iron construction offers superior heat dissipation for high-duty use.
• Manufacturer offers a 1 Year Limited warranty for industrial peace of mind.

Heavy Fabrication Continuous Operations

Designed for industrial assembly lines and fabrication shops requiring maximum storage. It maintains peak performance within high-volume pneumatic networks effectively. The 1 Year Limited warranty provides long-term security for critical large-scale manufacturing applications.
