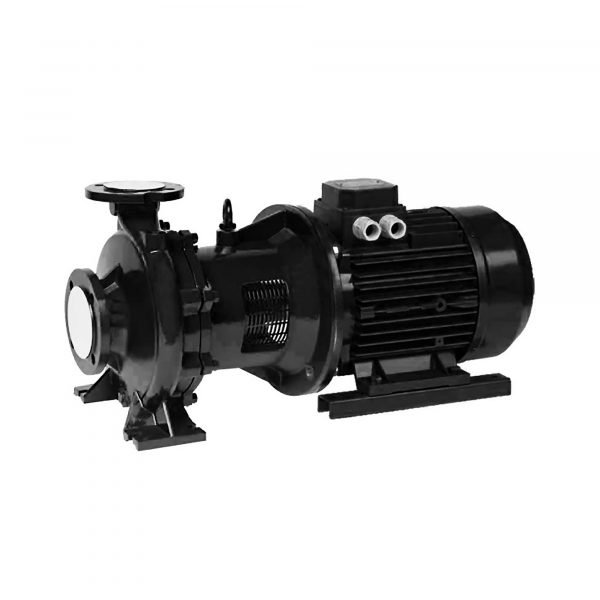

Saer-Usa Mg2 32-200Nb Close Coupled End-Suction Centrifugal Electric Pump (8460 GPH, 15 HP, 1.25in)
The Saer-Usa Mg2 32-200Nb Close Coupled End-Suction Centrifugal Electric Pump (8460 GPH, 15 HP, 1.25in) is a heavy-duty, high-head close-coupled pump optimized for industrial pressure boosting. The Saer-Usa Mg2 32-200Nb Close coupled pump delivers 8,460 GPH powered by a 15 HP motor. The close-coupled design saves space while maximizing pressure output via the 1.25in port. Ideal for water treatment plants, specialized industrial circulation, and high-pressure washing systems, it ensures robust and continuous performance.
Description
This SAER-USA Centrifugal Electric pumps with rigid couplings offer a solid and reliable design which allows easy maintenance. Ideal for firefighting and irrigation, heating and air conditioning systems, heat recovery and pressurization groups.
What’s Included
- (1) Water Pump
| Item# | 4438077 |
| Brand | SAER-USA |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 234.0 lbs |
| Max. Flow | 8,460 GPH |
| Horsepower | 15 HP |
| Port Size | 1.25 in |
| Volts | 220/460 |
| Max. Head Pressure | 242 ft |
| Watts | 11,000 |
| Amps | 40 |
| Vertical Lift | 17 ft |
| Solids Capacity | 0 in |
| Power Cord | 0 in |
| Inlet Diameter | 2 in |
| Max. Working Temperature | 104 °F |
| Housing Material | Cast-Iron |
| Max. PSI | 107 PSI |
| Phase | Three-phase |
| Product Weight | 230.0000 lb |
| Dimensions L x W x H (in.) | 36.9 x 9.4 x 13.4 in |
Saer-Usa Mg2 32-200Nb Close Coupled End-Suction Centrifugal Electric Pump (8460 GPH, 15 HP, 1.25in) Specs
| Brand | SAER-USA |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 234.0 lbs |
| Max. Flow | 8,460 GPH |
| Horsepower | 15 HP |
| Port Size | 1.25 in |
| Volts | 220/460 |
| Max. Head Pressure | 242 ft |
| Watts | 11,000 |
| Amps | 40 |
| Vertical Lift | 17 ft |
| Solids Capacity | 0 in |
| Power Cord | 0 in |
| Inlet Diameter | 2 in |
| Max. Working Temperature | 104 °F |
| Housing Material | Cast-Iron |
| Max. PSI | 107 PSI |
| Phase | Three-phase |
| Product Weight | 230.0000 lb |
| Dimensions L x W x H (in.) | 36.9 x 9.4 x 13.4 in |
