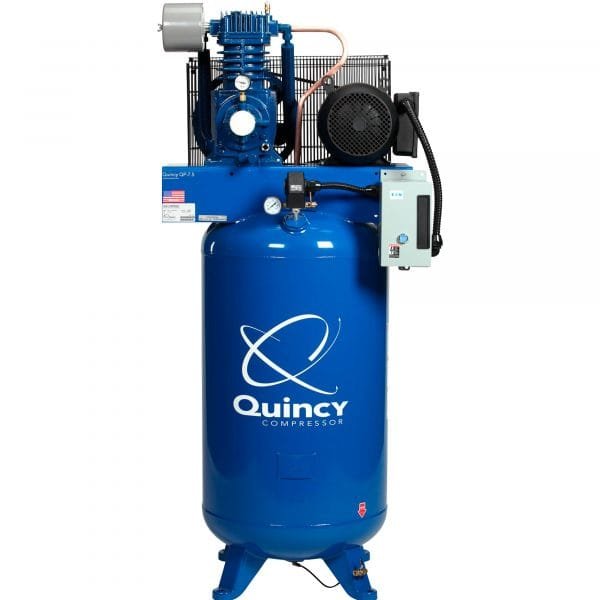

Quincy QP-7.5 373DS80VCA20 Air Compressor – Pressure
In Stock
$1,804.00
In Stock
Quincy QP-7.5 373DS80VCA20 Air Compressor is a 7.5 HP vertical pressure-lubricated 175 PSI industrial unit providing 80-gallon capacity for specialized three-phase 200V environments.
Rapid Air Displacement: Supplies 22.6 CFM @175PSI.
Vertical Tank Design: Provides stable space-saving mounting.
Rugged Iron Pump: Delivers long-term durability.
Three Phase Support: Runs on 200V.
Heavy Manufacturing Application: Drives industrial production lines.
Quincy QP-7.5 373DS80VCA20 Pressure Lubricated Reciprocating Compressor
| Model | 373DS80VCA20 |
| Brand | Quincy |
| Warranty | 5-Year |
| Ship Weight | 760.0 lbs |
| Horsepower | 7.5 |
| Air Tank Size | 80 |
| Volts | 200 |
| Stage | 2 |
| Max. PSI | 175 |
| CFM at Max. PSI | 22.6 |
| Working Pressure | 145–175 |
| Air Outlet Size | 3/4 ball valve |
| Motor RPM | 1,026 |
| Motor Phase | 3 |
| Amps | 40 |
| Duty Cycle | 100 % |
| Pump Life | 50,000 |
| Pump Material | Cast iron |
| Oil Required | Yes |
| Lubrication System | Pressure |
| Drain Type | Manual ball valve |
| Weight (lbs.) | 720 |
| Dimensions L x W x H (in.) | 37 x 24 x 74 |
