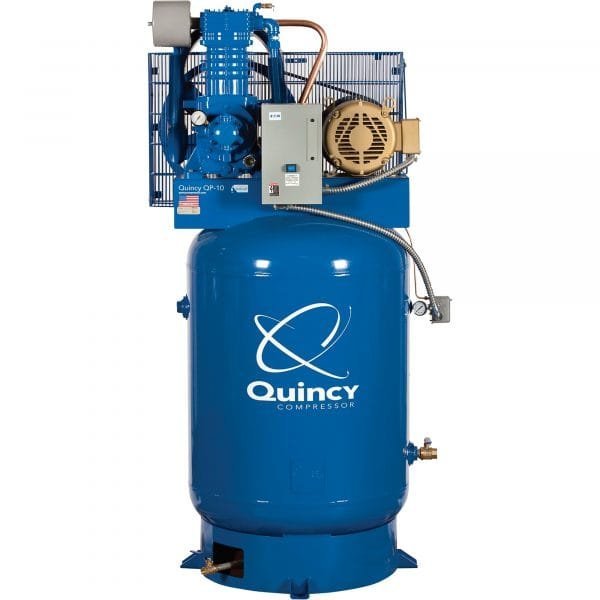

Quincy 3103DS12VCA20 – QP Pressure Lubricated Compressor
$2,575.00
In Stock
Quincy 3103DS12VCA20 – QP Pressure Lubricated Compressor This professional-grade 10 HP duplex system features specialized pressure-lubricated pumps and a vertical configuration designed to provide maximum component protection and space-saving efficiency.
Active Oil Pressure: Integrated pump for internal lubrication
Redundant Power System: Dual high performance motor units
Vertical Tank Configuration: Space saving 120 gallon design
Low Voltage Phase: Requires 200V three phase power
Extended Operational Life: Engineered for 100 percent duty
In Stock
Quincy 3103DS12VCA20 QP Pressure Lubricated Reciprocating Air Compressor
| Model | 3103DS12VCA20 |
| Brand | Quincy |
| Warranty | 5-year |
| Ship Weight | 850.0 lbs |
| Horsepower | 10 |
| Air Tank Size | 120 |
| Volts | 200/208 |
| Stage | 2 |
| CFM at 90 PSI | 35.9 |
| Max. PSI | 175 |
| Working Pressure | 135 |
| Air Outlet Size | 3/4 |
| Motor Phase | 3 |
| Duty Cycle | 100 % |
| Pump Life | 50,000 |
| Pump Material | Cast iron |
| Drain Type | Manual |
| Dimensions L x W x H (in.) | 40 x 30 x 75 |
