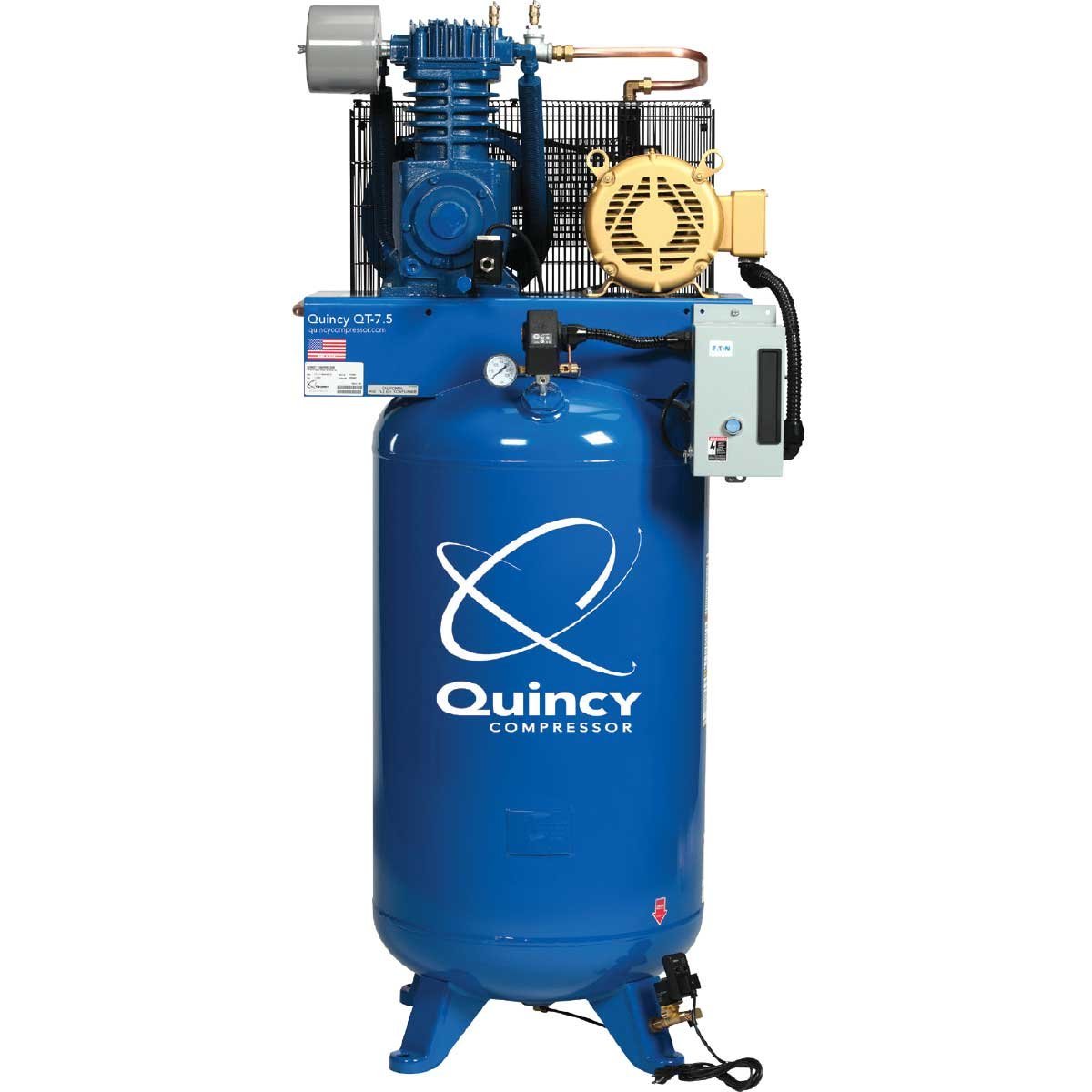

Quincy 271CS80VCB23 Air Compressor – 7.5HP 80Gal
High Torque Motor: Reliable 7.5 HP motor performance
Vertical Tank Configuration: Space saving 80 gallon design
Standard Three Phase: Requires 230V three phase power
Maximum Working Pressure: Supports stable 175 PSI operation
Rugged Material Build: Durable cast iron pump components
Description
Quincy 271CS80VCB23 | 23.8 CFM at 175 PSI Industrial Delivery Analysis
The Quincy 271CS80VCB23 from the QT-7.5 Series is a high-performance two-stage compressor engineered for busy automotive body shops and industrial facilities. Delivering an impressive 23.8 CFM at 175 PSI, this unit ensures superior volumetric efficiency for multi-user pneumatic manifolds, providing the necessary SCFM for high-demand spray booths and grinding stations within a space-efficient vertical footprint.
Built with a splash-lubricated pump and a mounted magnetic starter, this model is designed for long-term thermal stability during high-pressure cycles. Because the system utilizes a manual drain and lacks an automatic low oil shutdown sensor, technical operators must adhere to strict maintenance protocols, including daily moisture evacuation, to maintain optimal pump longevity and protect the precision-engineered air-end during intensive production shifts.
Key Features of Quincy 271CS80VCB23
- Powerful 7.5 HP motor produces 23.8 CFM at 175 PSI.
- Vertical 80-gallon tank design saves valuable industrial floor space.
- Two-stage reciprocating pump architecture sustains high-pressure tool performance.
- Solid cast iron cylinders ensure superior heat dissipation qualities.
- Single-phase 230V configuration fits diverse professional shop setups.
- Magnetic starter mounted for advanced motor circuit protection.
- Splash lubrication system supports intensive professional shop workflows.
- Standard 3/4 inch NPT outlet prevents restrictive system pressure drop.
- NEMA-rated motor ensures reliable starting under heavy pneumatic loads.
- USA-made engineering ensures long-term industrial durability and reliability.
Automotive Shop Power Usage
Ideal for commercial automotive service, industrial fabrication, and manufacturing. This model features a 1 Year warranty for industrial peace of mind. Compare our vertical air compressors to ensure your facility has the necessary air reserves for peak demand.
Quincy 271CS80VCB23 Air Compressor Specs
| Brand | Quincy |
| Full Model Code | 271CS80VCB23 (QT-7.5 Series) |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Two-Stage) |
| Lubrication Style | Splash Lubricated |
| Cooling System | Air Cooled |
| Motor Power | 7.5 HP |
| Max Working Pressure | 175 Psi |
| Free Air Delivery / Capacity | 23.8 CFM @ 175 Psi |
| Drive Type | Belt Drive (Electric) |
| Noise Level | 78-82 dB(A) |
| Outlet Connection Size | 3/4 Inch NPT |
| Tank Volume | 80 Gallons (Vertical) |
| Dimension (LxWxH) | 940 x 711 x 1727 mm |
| Net Weight | 295 kg |
| Control Panel Type | Magnetic Starter Mounted |
| Voltage/Phase/Frequency | 230V / 1 Phase / 60 Hz |
| Standard Warranty | 1 Year (Extended to 3Y with Kit) |
| Maintenance Interval | 1000 Hours (Synthetics) |
| Application | Busy automotive body shops and industrial facilities needing high CFM in a vertical, space-efficient design. |
