Pierce Arrow 4000 Lb Pickup Dump Hoist Kit (1999-2010 Chevy Short Bed)

Description

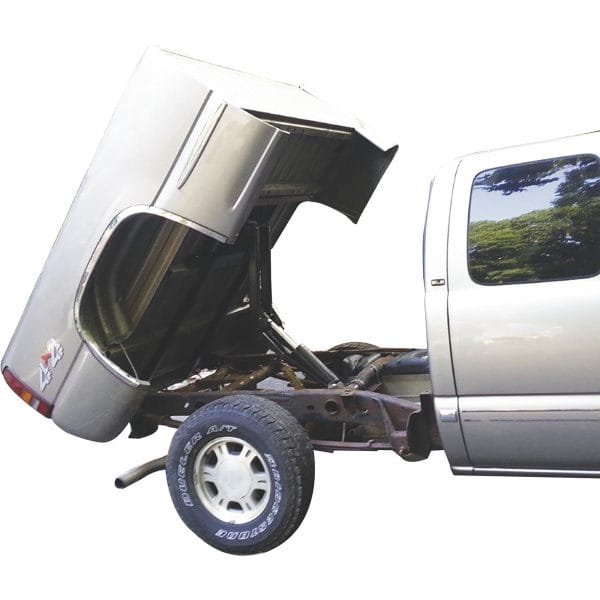

The Pierce Arrow 4000 Lb Pickup Dump Hoist Kit (1999-2010 Chevy Short Bed) provides outstanding labor savings and efficient bulk cargo handling for residential landscapers, rural acreage owners, and independent building contractors. Designed as an alternative to bulky trailers or oversized industrial dump vehicles, this steel scissor hoist kit solves maneuvering restrictions in tight alleyways and residential driveways by converting a standard 6-foot truck box into an agile dumping mechanism. Two operators can install the complete low-mounting scissor network in an afternoon, giving teams immediate remote-controlled tipping capabilities to empty full 4000-pound loads without manual shoveling.

Constructed from high-tensile structural steel with an overall packaging size measuring 42 by 48 by 18 inches, this 292-pound shipping package features a specialized narrow drop-hinge knuckle to maintain factory bed alignment. The integrated 12V hydraulic pump and motor combination drives a 44-inch high-pressure hydraulic hose line to tilt the steel hinge arms smoothly up to a maximum 45-degree angle. Procuring this short bed conversion package eliminates secondary trailer registration fees and equipment rental outlays, delivering concrete financial justification and enhanced property maintenance versatility for commercial operators.

Key Features of Pierce Arrow 4000 Lb Short Bed Kit

• Six foot short bed frame mapping integrates precisely with 1999 through 2010 Chevrolet pickup chassis without requiring custom modification.
• Low mounting scissor framework fits neatly beneath the truck bed to preserve factory vehicle profiles and normal driving dynamics.
• Narrow drop hinge knuckle design stabilizes the cargo box during ascension to prevent side-to-side shifting on uneven terrain.
• Remote controlled electrical system empowers operators to manage the tipping process from a safe physical distance outside the cargo path.
• Four thousand pound hydraulic force drives a 45-degree box tilt to unload soil, mulch, and heavy firewood sets effortlessly.
• Complete multi component installation array supplies all necessary steel plates, brackets, hoses, and hardware to ensure rapid tool deployment.

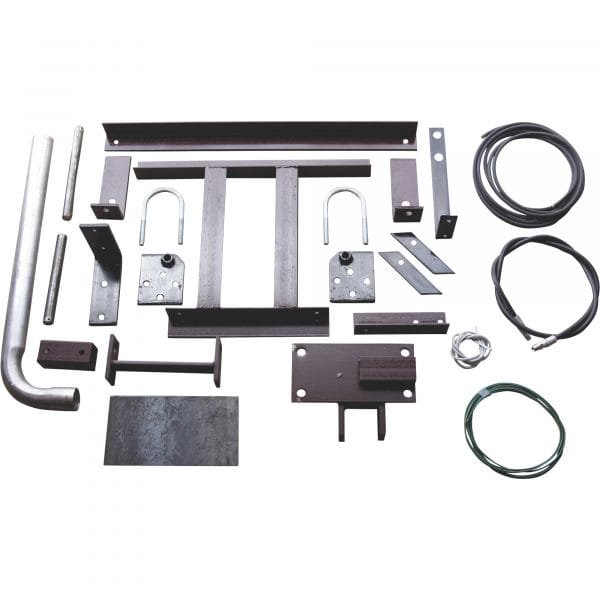

In the Box

• (1) Scissor assembly with cylinder
• (1) Low-mounting scissor with narrow drop-hinge knuckle
• (1) Left and right hinge set
• (1) Left and right hinge arm set
• (1) Gas filler bracket
• (1) Stiffener plate
• (1) Strap
• (1) 44in. hydraulic hose
• (1) 3/8in. x 1/4in. elbow
• (1) Hardware kit
• (1) Electrical kit
• (1) 12V hydraulic pump and motor
• (1) Lower frame angle
• (1) Pump bracket
• (1) Set of cylinder shafts
• (1) Set of cotter pins
• (1) Set of Clips
• (1) Base assembly

Industrial Vehicular Exterior Cargo Logistics Protection

Perfect for demanding fleet transit operations and specialized outdoor commercial assignments, this premium dump hoist conversion kit ensures total asset utility on the job site. This professional equipment setup comes backed by a comprehensive 24-month limited parts manufacturer warranty plan to safeguard your corporate logistics investment against premature component wear. Selecting this rugged utility carrier decreases equipment handling strain while driving major long-term transport efficiencies for the enterprise.
