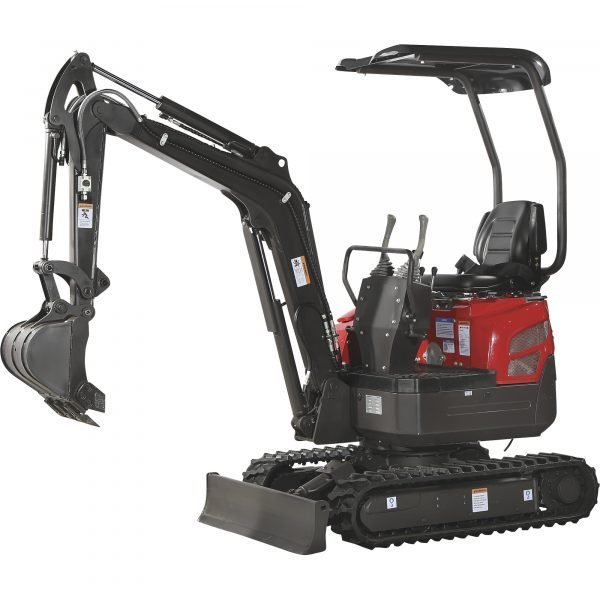

NorTrac XN16 Mini Excavator 15.2 HP Diesel Engine
The NorTrac XN16 Mini Excavator is a compact, powerful earthmoving machine designed for tight-access job sites. It features a reliable 15.2 HP Diesel Engine, providing ample power for digging, trenching, and grading tasks. This Mini Excavator offers excellent maneuverability and is perfect for landscaping, plumbing, utility installation, and small-scale construction projects. The NorTrac XN16 Mini Excavator provides professional performance in a highly efficient, small footprint.
Description
The NorTrac XN16 Mini Excavator is the perfect machine for digging in and being productive on every job. This 15.2 HP mini excavator makes many construction tasks safer and more efficient. Its compact size allows for quick movement into uneven and hard-to-access areas that can speed up many jobs, including digging holes and lifting or moving rocks and dirt. Compatible with the NorTrac Quick Change hitch, plus the following accessories: auger, hammer, heavy-duty grabber, and narrow bucket (each sold separately.) EPA certified. NOTE: Due to supply chain disruptions, the track pattern for this excavator may vary slightly from the image shown.What’s Included
- * (1) Mini excavator
| Item# | 960999 |
| Brand | NorTrac |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 3638.0 lbs |
| Product Style | Mini excavator |
| Horsepower | 15.2 |
| Engine | YANMAR |
| Cylinders (qty.) | 3 |
| Overall Length (in.) | 124.4 |
| Blade Width (in.) | 43.7 |
| Max. Width (in.) | 43.7 |
| Track Length (in.) | 57.09 |
| Blade Size | 43.7 |
| Max. Lift Height (in.) | 128.94 |
| Digging Depth (in.) | 84.65 |
| Ground Clearance (in.) | 17.2 |
| Capacity (lbs.) | Digging bucket capacity: 11.89 gals., Lifting capacity: 220 lbs. |
| Lift Capacity (lbs.) | 440 |
| Engine Model | 4PNPAM/3TNV74F |
| Bore x Stroke (in.) | 2.91 x 3.03 |
| Displacement (cu. in.) | 60.6 |
| Max. RPM | 2,400 |
| Max. Torque (ft.-lbs.) | 50.2 |
| Fuel Type | Diesel |
| Speeds (qty.) | 3,000R/MIN |
| Hitch Type | Fixtures hanging |
| Engine Type | 3TNV74 3-cylinder diesel w/EPA |
| Fuel Capacity (gal.) | 4.76 |
| Engine Oil (qt. (L)) | 0.74 gal. |
| Overall Dimensions L x W x H (in.) | 124 x 43.7 x 93.5 |
| Material | Steel, rubber, plastic |
| Compatible With | Quick Change Hitch (Item# 96674), Auger (Item #96715), Heavy-Duty Grabber (Item #103373), Hammer (Item #96686) and Narrow Bucket (Item #96666) |
| Product Weight | 3,080 lb |
NorTrac XN16 Mini Excavator 15.2 HP Diesel Engine Specs
| Brand | NorTrac |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 3638.0 lbs |
| Product Style | Mini excavator |
| Horsepower | 15.2 |
| Engine | YANMAR |
| Cylinders (qty.) | 3 |
| Overall Length (in.) | 124.4 |
| Blade Width (in.) | 43.7 |
| Max. Width (in.) | 43.7 |
| Track Length (in.) | 57.09 |
| Blade Size | 43.7 |
| Max. Lift Height (in.) | 128.94 |
| Digging Depth (in.) | 84.65 |
| Ground Clearance (in.) | 17.2 |
| Capacity (lbs.) | Digging bucket capacity: 11.89 gals., Lifting capacity: 220 lbs. |
| Lift Capacity (lbs.) | 440 |
| Engine Model | 4PNPAM/3TNV74F |
| Bore x Stroke (in.) | 2.91 x 3.03 |
| Displacement (cu. in.) | 60.6 |
| Max. RPM | 2,400 |
| Max. Torque (ft.-lbs.) | 50.2 |
| Fuel Type | Diesel |
| Speeds (qty.) | 3,000R/MIN |
| Hitch Type | Fixtures hanging |
| Engine Type | 3TNV74 3-cylinder diesel w/EPA |
| Fuel Capacity (gal.) | 4.76 |
| Engine Oil (qt. (L)) | 0.74 gal. |
| Overall Dimensions L x W x H (in.) | 124 x 43.7 x 93.5 |
| Material | Steel, rubber, plastic |
| Compatible With | Quick Change Hitch (Item# 96674), Auger (Item #96715), Heavy-Duty Grabber (Item #103373), Hammer (Item #96686) and Narrow Bucket (Item #96666) |
| Product Weight | 3,080 lb |
