Leeson 120998 4 HP Contractor Power Saw Electric Motor (3600 RPM, 230V)
$492.00
In Stock

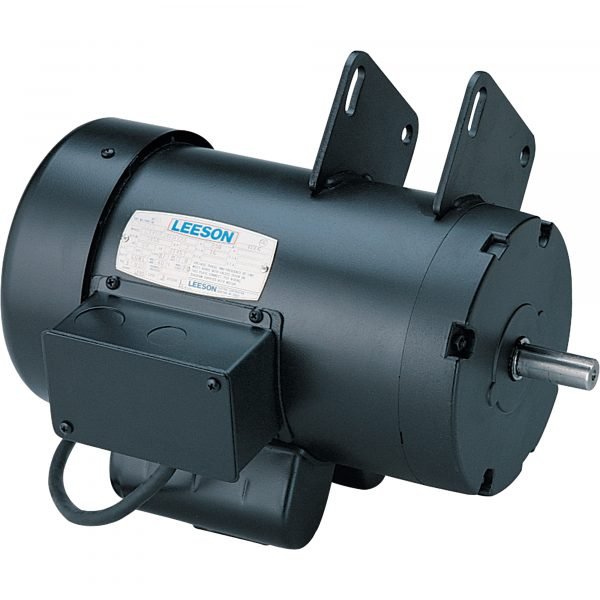

The rugged Leeson 120998 4 HP Contractor Power Saw Electric Motor (3600 RPM, 230V) features an open drip-proof steel frame built to resist thick wood shavings and workshop dust accumulation. Operating on a single-phase 230V electrical line, this high-velocity motor draws 15.0 amps under heavy load. It incorporates a standard NEMA 56AZ frame configuration, manual overload thermal protection resets, and a 1.0 service factor.
In Stock
Wholesale Price
Request for Quotations
Leeson 120998 4 HP Contractor Power Saw Electric Motor (3600 RPM, 230V) Specs
| Brand | Leeson |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 48.0 lbs |
| Horsepower | 4 |
| Rated RPM | 3,600 |
| Volts | 230 |
| Amps | 17.6 |
| Hertz | 60 |
| Motor Phase | 1 |
| Shank Diameter (in.) | 3/4 |
| Shank Length (in.) | 1 3/4 |
| Frame Type | 145Y |
| Rotation | Reversible |
| Reversible | Yes |
| Totally Enclosed Housing | Yes |
| Open Drip Proof Housing | No |
| Capacitor Start | Yes |
| Capacitor Run | Yes |
| Auto Overload Protection | No |
| Manual Overload Protection | No |
| Rigid Base | Special |
| Resilient Base | No |
| UL | Yes |
| CSA Approved | Yes |
What's Included
- (1) 4 HP table saw motor
