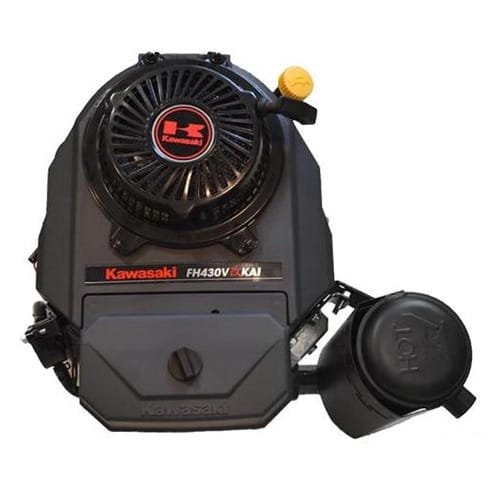

Kawasaki FH430V – 15HP V-Twin Vertical Engine
$887.00
In Stock
Restore your commercial mower with the 15HP 494cc Kawasaki FH430V Engine, a vertical V-Twin powerhouse utilizing overhead valve technology and forced air cooling for consistent mechanical performance.
- Power: 15.0 Gross Horsepower Output
- Engine: 494cc V-Twin Vertical OHV
- Cooling: High Efficiency Air Cooling
- Lubrication: Pressure Lubrication With Filter
- Warranty: Three Year Commercial Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
The Kawasaki FH430V S21 S (also known as FH430V DS21S) is a 429cc, V-twin, air-cooled, 4-stroke, vertical-shaft engine that delivers 14.5 horsepower. It is designed for use in residential and commercial lawn mowers, garden tractors, and other outdoor power equipment.
| BRAND | Kawasaki |
|---|---|
| MODEL NUMBER | FH430V-S21-S |
| WARRANTY | 3 Year |
| SHIPPING WEIGHT | 70.5 |
| DISPLACEMENT | 431cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Vertical |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 80mm |
| CRANKSHAFT DIAMETER | 1″ |
| CRANKSHAFT LENGTH | 80mm |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 2 |
| CYLINDER BORE TYPE | Cast Iron Sleeve |
| AIR CLEANER TYPE | Dual Element KAI |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 1.9 qt |
| LOW OIL ALERT | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Internally Vented |
| CHOKE CONTROL | Remote |
| MAX RPM | 3600 |
| BOLT CIRCLE | 10 |
Kawasaki FH430V - 15HP V-Twin Vertical Engine Technical Specifications
| Brand | Kawasaki |
|---|---|
| Full Model SKU | FH430V |
| Country of Origin | Japan |
| Engine Type | 4-Stroke OHV V-Twin |
| Displacement | 431 cc |
| Horsepower / Net Power | 15.0 HP @ 3600 RPM |
| Net Torque | 24.3 Ft-Lbs @ 2400 RPM |
| Crankshaft Diameter | 25.4 mm (1 inch) |
| Crankshaft Length | 80 mm (3.15 inch) |
| Crankshaft End | Keyed |
| Starter System | Recoil or Electric |
| Oil Capacity | 1.5 Liters |
| Lubrication System | Full Pressure Lubrication |
| Governor System | Mechanical |
| Air Filter Type | Dual Element |
| Net Weight | 31.0 kg |
| Application | Lawn Tractors, Garden Equipment |
