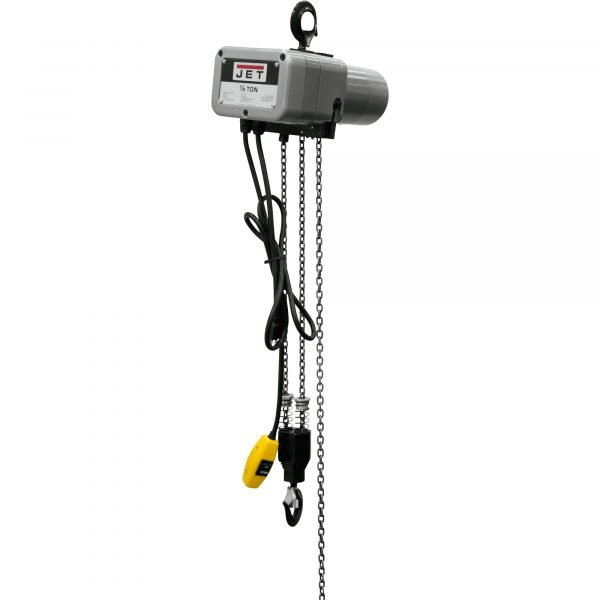

JET JSH Series Electric Chain Hoist, 1/4-Ton, 1-Phase, 20 ft. Lift
Description
This JET JSH Series Electric Chain Hoist features safety, durability and portability to operate in light-duty commercial and industrial applications. Die cast aluminum housing is lightweight and portable. Slip clutch overload protection mechanism prevents hoist from damaging loads above rated capacity. Built-in thermal overload protection system keeps hoist from overheating. Industry-proven magnetic disk brake increases safety by ensuring rapid stops and securing the load. Maintenance-free gear train incorporates a sealed oil bath, eliminating maintenance. Load chain is Grade 80 black oxide-coated for durability. Load-tested to 125% of capacity. Complies with OSHA regulations ANSI/ASME B30.16 and HST-1 standards.
What’s Included
- (1) Hoist
- (1) Chain w/bracket and fasteners
| Item# | 56334 |
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 44.0 lbs |
| Power Source | Electric |
| Capacity | 500 lb |
| Lift Height | 20 |
| Lift Speed | 8 |
| Duty Cycle | H-3 |
| Volts | 115 |
| Brake Type | Magnetic disk brake |
| Chain Bag Included | Yes |
| Required Head Room | 15 27/100 |
| Lift Chain Diameter | 1/6 |
| Motor Output | 1/6 |
| Thermal Overload Protection | Yes |
| Dimensions L x W x H (in.) | 14.6 x 10.8 x 11.4 in |
JET JSH Series Electric Chain Hoist, 1/4-Ton, 1-Phase, 20 ft. Lift Specs
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 44.0 lbs |
| Power Source | Electric |
| Capacity | 500 lb |
| Lift Height | 20 |
| Lift Speed | 8 |
| Duty Cycle | H-3 |
| Volts | 115 |
| Brake Type | Magnetic disk brake |
| Chain Bag Included | Yes |
| Required Head Room | 15 27/100 |
| Lift Chain Diameter | 1/6 |
| Motor Output | 1/6 |
| Thermal Overload Protection | Yes |
| Dimensions L x W x H (in.) | 14.6 x 10.8 x 11.4 in |
Additional information
| Categories | Lifts Cranes |
|---|
