JET IDP-22 Industrial Floor Drill Press – 22in, 1.5HP
Description

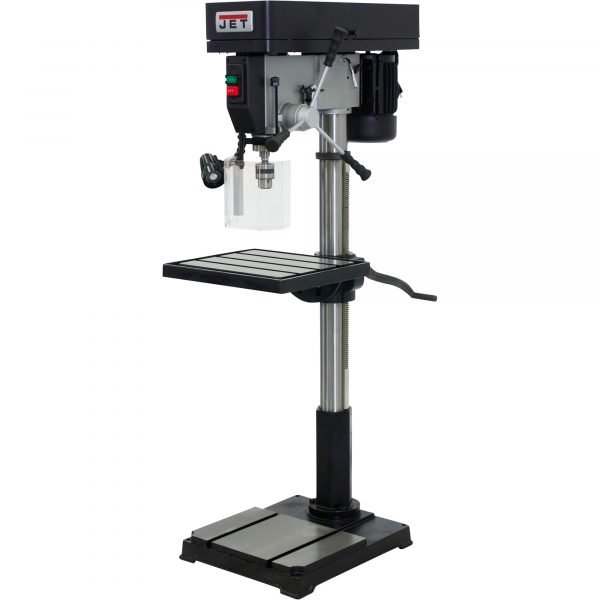

This JET Industrial Floor Drill Press delivers accuracy, stability and versatility. It follows strict guidelines and electrical requirements certified by the CSA/CUS. The spindle is supported by high quality ball bearings. A hinged metal belt and pulley cover coupled with a quick-adjustment motor mount allow rapid changing of spindle speeds. The 45° tilting, crank-operated worktable with quick release clamp features a 1/2in. diameter external positive depth stop with a 3 nut-locking feature for quick adjustment. The table also features large hand grips for operator comfort and an adjustable tension spindle return spring. The drill chuck and key attach to the side of the drill press, so they’re within reach of the operator. The on/off switch is located on the front of the drill press head. The heavy-duty cast iron table and base are designed to last. Includes an LED machine lamp.
What’s Included
- (1) Drill press
| Item# | 65041 |
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 364.0 lbs |
| Horsepower | 1.5 |
| Volts | 115/230 |
| Speed (RPM) | 175–3,050 |
| Speeds (qty.) | 12 |
| Vertical Stroke | 4 1/2 in. |
| 360° Head Swivel | No |
| Draw Bar | No |
| Swing | 16 7/8 in. |
| Drilling Capacity (in.) | Cast iron: 1 1/4, Mild steel: 1 |
| Chuck Size | 5/8 |
| Max. Spindle Distance | 28 |
| Worktable L x W (in.) | 18 5/8 x 16 1/8 |
| Light Included | Yes |
| Stand Included | Floor standing |
| Dimensions L x W x H (in.) | 35 x 19 x 67 |
JET IDP-22 22 in. 1.5 HP Industrial Floor Drill Press Specs
| Brand | JET Tools |
| Full Model Code | IDP-22 |
| Machine Type | Industrial Floor Drill Press |
| Drilling Capacity | 1.25" Cast Iron / 1" Mild Steel |
| Special Features | 45° Tilting Table / External Positive Depth Stop |
| Motor Power | 1.5 HP (115/230V Dual Voltage) |
| Spindle Speed | 12-Speed (175–3,050 RPM) |
| Integrated Light | Yes (LED Machine Lamp) |
| Certification | CSA/CUS Certified |
| Warranty Information | 24 Months Parts / 24 Months Labor |
| Product Weight | 364 lbs (165 kg) |
| Application | High-accuracy industrial drilling with quick-adjustment motor mount and comfort grips. |
