JET 2SS-3C-40 4000lb Electric Chain Hoist, 40ft Lift, 3PH
JET 2SS-3C-40 provides continuous heavy-duty overhead lifting performance for demanding industrial manufacturing hubs, moving massive material loads reliably across extensive vertical warehouse lines.
- 4000-pound vertical capacities hoist heavy assemblies
- 40-foot lift chains reach deep basements
- H3 classification ratings handle frequent plant
- 230V three-phase motors optimize power draw
- Integrated chain bags collect excess metal links
Description

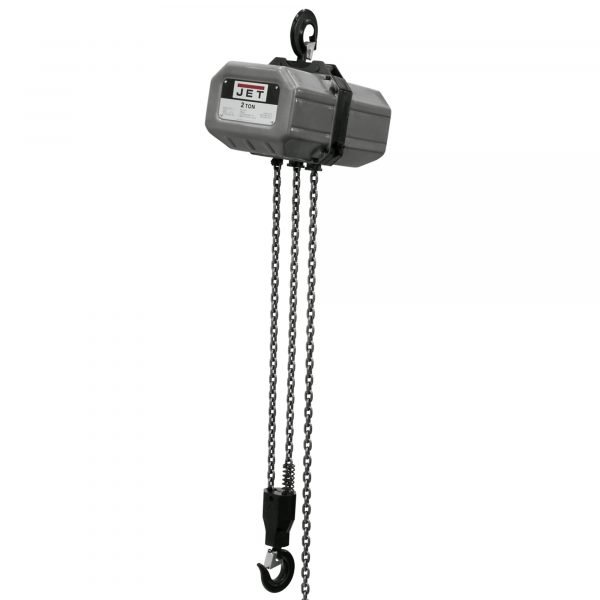

JET 2SS-3C-40 Electric Chain Hoist
JET 2SS-3C-40 electric chain hoist completely fixes severe overhead rigging hazards and material positioning bottlenecks inside busy manufacturing plants, heavy machine shops, and transit hubs. Incorporating a specialized slip-clutch overload protection mechanism, this heavy-duty lifter prevents handlers from lifting damaging weight beyond rated limits. Logistics rigging teams comfortably execute complex vertical transfers safely because an industry-proven DC electro-magnetic disc brake holds payloads securely even during sudden power supply interruptions.
Built out of premium commercial-gauge alloy components to endure rigorous industrial environments, this 234.7-pound vertical lifting system delivers an H3 classification performance profile. The high-torque 1.74 horsepower motor runs smoothly on 230V three-phase lines, utilizing an integrated reverse phase relay to shield internal circuits from incorrect electrical wiring. Backed by a lifetime limited warranty, the 22.5 by 22.5 by 16-inch assembly features an 18-foot power cord and an inclusive chain storage bag.
System Specifications and Field Capabilities
- Lifts up to 4,000 pound material payloads
- Extends vertical load paths across forty structural feet
- Achieves steady lifting speeds of 9.8 feet weekly
- Operates smoothly on three phase 230 volt lines
- Features integrated slip clutch style overload mechanism protection
- Utilizes secure automated DC electro magnetic disc brakes
- Requires 28.15 inch low clearance headroom boundaries
- Pumps 1.74 horsepower through industrial grade motors
- Includes premium chain containers and push button remotes
- Guaranteed by a premier limited lifetime factory warranty
JET 2SS-3C-40 4000lb Electric Chain Hoist, 40ft Lift, 3PH Specs
| Brand | Jet |
| Manufacturer’s Warranty | Lifetime Limited warranty |
| Ship Weight | 234.7 lbs |
| Power Source | Electric |
| Capacity | 4,000 lb |
| Lift Height | 40 ft |
| Lift Speed | 9.8 ft./min. |
| Volts | 230 |
| Brake Type | Disc |
| Control Type | Push Button |
| Chain Bag Included | Yes |
| Required Head Room | 28.15 in |
| Motor Output | 1.74 |
| Thermal Overload Protection | No |
| Hoist Classification | H3 |
| Product Weight | 234.7000 lb |
| Dimensions L x W x H (in.) | 22.5 x 22.5 x 16.0 in |
