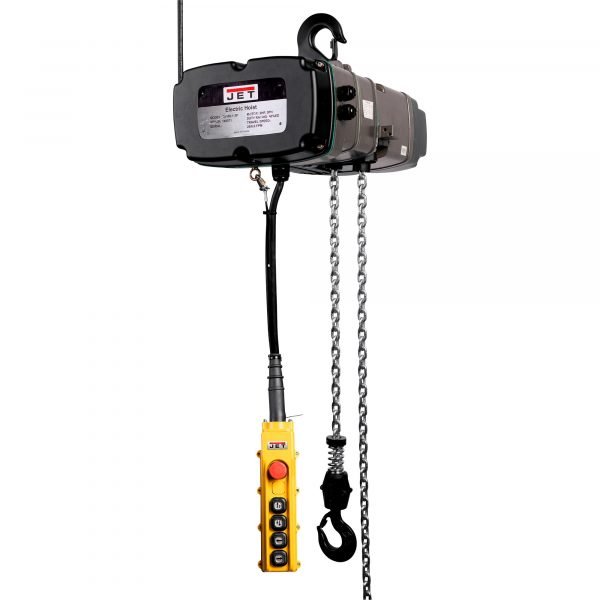

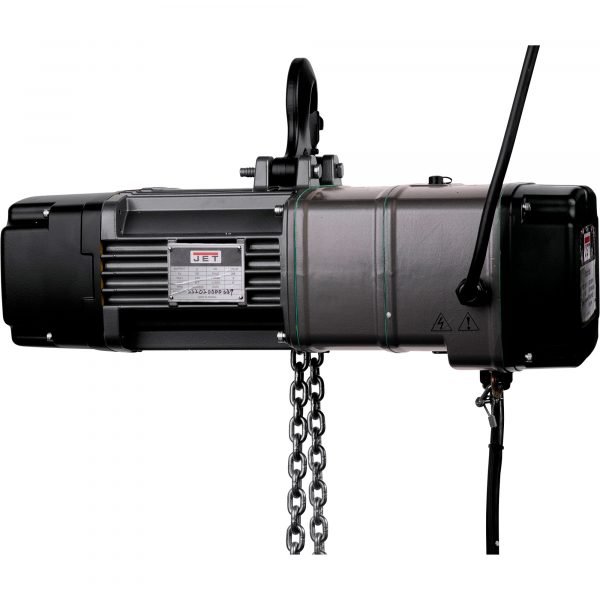

JET TS Series 2-Speed Electric Hoist, 3-Ton, 3-Phase 460V, 20 ft. Lift
Achieve precise and powerful heavy lifting with the JET TS Series 2-Speed Electric Hoist, 3-Ton, 3-Phase 460V, 20 ft. Lift. The 2-speed operation allows for rapid lifting and slow, precise positioning of 3-ton loads over a 20 ft reach, maximizing control and safety. This hoist is engineered for continuous, high-voltage industrial use. The JET TS Series 2-Speed Electric Hoist is an indispensable solution for maximizing efficiency in manufacturing and complex assembly.
Description
The JET TS Series 2-Speed Electric Chain Hoist is designed and built for safety, durability, and efficient operation in the toughest industrial applications. 2 speeds allow you to move materials quickly and safely. You can then slow your load down to position it exactly where you need it without excessive bump firing. The 2-in-1 mechanical brake and overload protection assure you of safety first on the jobsite. This new system will brake quickly while providing protection from overloading the hoist. The patented gear limit switch will allow precise control of the stopping point in both directions. This feature will prolong the life of the hoist and help avoid possible damage to the unit. All of this with safe lifting speeds up to 33 feet per minute and as low as 3 feet per minute give you the ability to be more efficient with every load.
What’s Included
- (1) Electric chain hoist
| Item# | 107223 |
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 437.0 lbs |
| Power Source | Electric |
| Capacity | 6,000 lb |
| Lift Height | 20 ft |
| Lift Speed | 21/5 |
| Duty Cycle | H4 |
| Volts | 460 |
| Brake Type | Mechanical |
| Control Type | Push button |
| Chain Bag Included | Yes |
| Required Head Room | 43.3 in |
| Motor Output | 5.0/1.2 |
| Thermal Overload Protection | Yes |
| Product Weight | 437 lb |
| Dimensions L x W x H (in.) | 37 x 27 x 24 |
JET TS Series 2-Speed Electric Hoist, 3-Ton, 3-Phase 460V, 20 ft. Lift Specs
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 437.0 lbs |
| Power Source | Electric |
| Capacity | 6,000 lb |
| Lift Height | 20 ft |
| Lift Speed | 21/5 |
| Duty Cycle | H4 |
| Volts | 460 |
| Brake Type | Mechanical |
| Control Type | Push button |
| Chain Bag Included | Yes |
| Required Head Room | 43.3 in |
| Motor Output | 5.0/1.2 |
| Thermal Overload Protection | Yes |
| Product Weight | 437 lb |
| Dimensions L x W x H (in.) | 37 x 27 x 24 |
