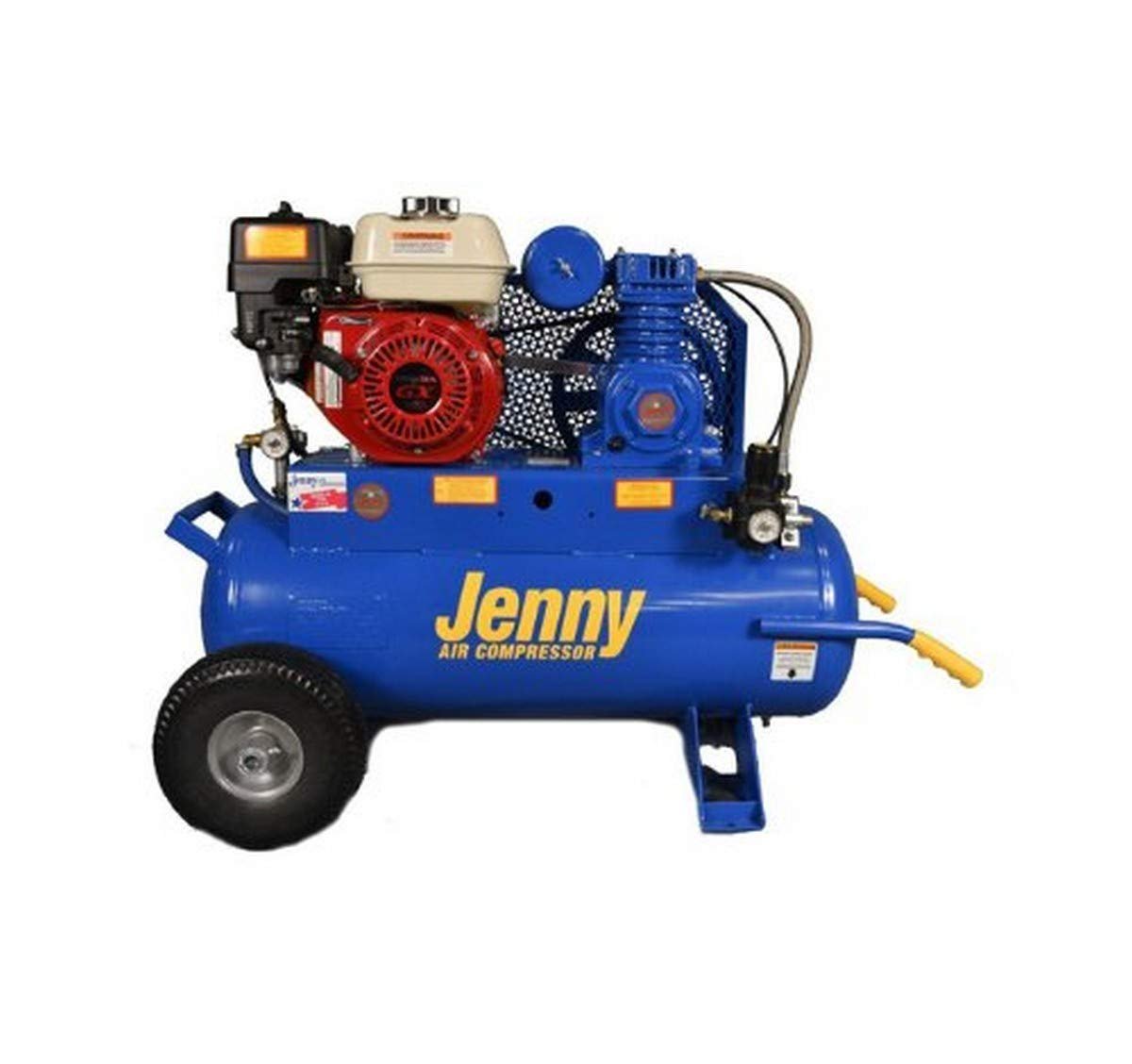

Jenny C6HGA-17P Air Compressor – 6.5HP 17Gal
Ultimate Engine Power: Supplies powerful 6.5 HP performance
Large Portable Tank: Features 17-gallon dual receiver design
Independent Fuel System: Utilizes reliable Honda gasoline engine
Maximum Sustained Pressure: Reaches reliable 150 PSI output
Rugged Material Durability: Includes durable cast iron compressor pump
Description
Jenny C6HGA-17P 6.5HP 17 Gallon Compressor
The Jenny C6HGA-17P is a professional gasoline-powered air compressor designed for heavy-duty field applications requiring high airflow in a portable package. This 17-gallon tank configuration offers an ideal balance between mobility and air reserve, allowing service technicians to operate high-torque pneumatic tools at remote job sites where electrical infrastructure is completely unavailable or unreliable.
Mechanical integrity is maintained through a high-efficiency flywheel that provides forced-air cooling for the pump assembly. Utilizing these industrial reciprocating air compressors ensures consistent pressure delivery while the Honda GX200 engine maintains fuel efficiency and provides the rugged starting reliability required for grueling outdoor industrial environments.
Jenny C6HGA-17P Key Features
- Tank Size: 17 Gallon Tank
- Lubrication: Splash Lubrication System
- Starting System: Recoil Start Engine
- Fuel System: Gasoline Honda GX200
- Max Pressure: 150 PSI Rating
- Air Displacement: 11.2 CFM Delivery
- Warranty: 2 Year Engine
Durable Cast Iron Pump
The unit features a 100% cast iron pump housing to ensure maximum thermal stability and extended service life. This heavy-duty material effectively dampens mechanical vibrations while facilitating rapid heat dissipation from the cylinder walls. Precision-honed cylinders reduce internal friction and wear, significantly extending the operational life of the entire compression assembly.
Mobile Service Truck Operations
This model is perfectly suited for roadside assistance vehicles, construction sites, and agricultural field maintenance tasks. The 17-gallon pneumatic-tired tank allows for easy maneuvering over uneven terrain while providing enough air volume for impact wrenches and grinders. Industrial technicians value the C6HGA-17P for its rugged build and consistent field performance.
Deploy the Jenny C6HGA-17P to enhance your field productivity with a dependable and highly portable air compression solution. Contact our technical team to Request Technical Quote or Check Availability at Muldepot.com.
Jenny C6HGA-17P Air Compressor Specs
| Brand | Jenny |
| Full Model Code | C6HGA-17P |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Single-Stage) |
| Lubrication Style | Splash Lubricated |
| Cooling System | Air Cooled |
| Motor Power | 6.5 HP |
| Max Working Pressure | 125 Psi |
| Free Air Delivery / Capacity | 12.5 CFM @ 100 Psi |
| Drive Type | Belt Drive (Gasoline Engine - Honda GX200) |
| Noise Level | 80-84 dB(A) |
| Outlet Connection Size | 3/8 Inch NPT |
| Tank Volume | 17 Gallons (Horizontal) |
| Dimension (LxWxH) | 914 x 432 x 762 mm |
| Net Weight | 88 kg |
| Control Panel Type | Engine Mounted Throttle Control |
| Voltage/Phase/Frequency | N/A (Gasoline Engine) |
| Standard Warranty | 1 Year Limited |
| Maintenance Interval | 500 Hours |
| Application | Professional field service and industrial maintenance needing high portable air volume and robust gasoline power. |
