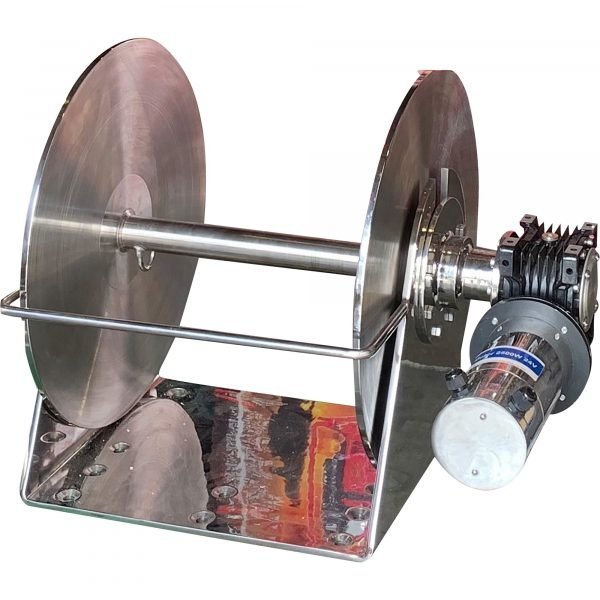

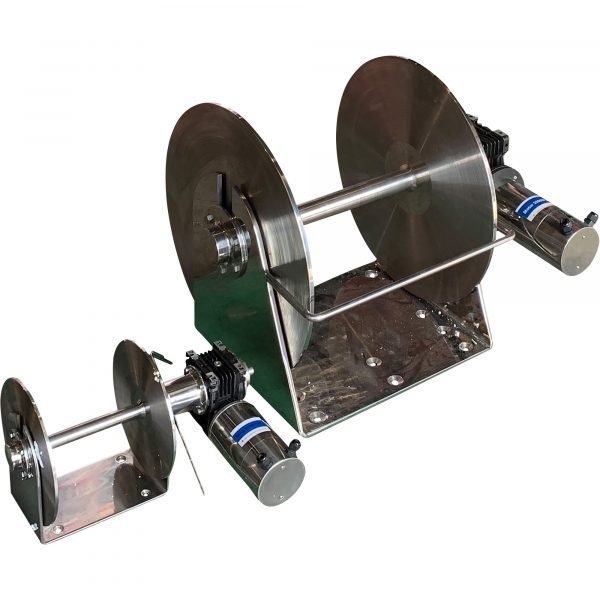

Endurance Marine EDM2500W-015SS Stainless Steel Drum Winch – 4000 Lb, 24V DC
Endurance Marine EDM2500W-015SS delivers rugged marine towing and anchoring performance under harsh saltwater conditions, allowing commercial vessel operators to manage heavy lines effortlessly without corrosion worries.
- Stainless steel drum housing resists severe saltwater rust damage completely
- 4000-pound line capacity pulls heavy commercial boats safely shoreward
- 24V DC electric motor maintains steady winding torque under load
- 45:1 worm gear ratio prevents dangerous rope slippage during pulling
- 328-foot rope length provides exceptional deep water reach capabilities
Description
Endurance Marine EDM2500W-015SS Drum Winch
Endurance Marine EDM2500W-015SS stainless steel electric drum winch completely addresses dangerous anchor slippage risks and manual retrieval bottlenecks during offshore fishing expeditions, maritime shipping runs, and industrial material lifting operations. Driving a heavy-duty 3.5 HP permanent magnet motor coupled with a 45:1 worm gear reduction loop, this powerful anchor tool yields a massive 4,000-pound maximum line pull capacity. Boaters comfortably maneuver deep mooring spaces because an included dual-direction solenoid with an active up/down toggle switch allows single-person control cycles safely.
Fabricated entirely from premium marine-grade stainless steel to resist harsh salt water corrosion permanently, the massive 262-pound winch incorporates a fully sealed waterproof gearbox. The high-performance 24V DC utility system retrieves up to 328 feet of half-inch diameter rope at a swift 45 feet per minute velocity stream, allowing adaptable motor mounting angle alignments inside large anchor wells. Supported by a 12mth consumer/90day commercia manufacturer warranty, the 36x30x30-inch kit packages a circuit breaker and an under-surface mounting plate.
Performance Metrics and Technical Data
- Pulls up to 4,000 pounds maximum line capacity
- Spans extensive 328 foot half inch rope distances
- Achieves rapid anchor line speeds reaching forty five FPM
- Driven by powerful 3.5 horsepower permanent magnet motors
- Operates smoothly on standard twenty four volt DC power
- Utilizes robust forty five to one worm gear assemblies
- Fabricated using durable marine grade quality stainless steel components
- Includes dual direction solenoid units and circuit breakers safely
- Weighs 262 pounds for heavy marine vessel stabilization
- Protected by standard 12mth consumer/90day commercia warranty lines
Endurance Marine EDM2500W-015SS Stainless Steel Drum Winch - 4000 Lb, 24V DC Specs
| Brand | Endurance Marine |
| Manufacturer’s Warranty | 12mth consumer/90day commercia |
| Ship Weight | 262.0 lbs |
| Application | Marine |
| Capacity (Line Pull) | 4,000 lb |
| Volts | 24 |
| Horsepower | 3.5 HP |
| Gear Type | Worm |
| Gear Ratio | 45:1 |
| Line Speed | 45 ft./min. |
| Rope Length | 328 ft |
| Rope Diameter | 0.5 in |
| Mounting Hardware Included | Yes |
| Product Weight | 262 lb |
| Dimensions L x W x H (in.) | 36 x 30 x 30 |
