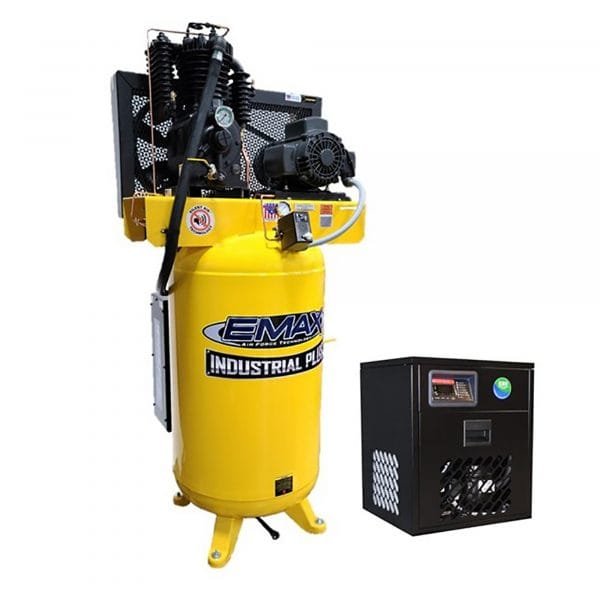

EMAX ESP05V080I1PK – Silent 1PH Vertical Air Compressor

Emax ESP05V080I1PK | 20 CFM at 90 PSI Industrial Delivery Analysis

The Emax ESP05V080I1PK Silent Air is a specialized single-phase industrial solution engineered for environments requiring ultra-clean, dry air and quiet operation. Delivering 20 CFM at 90 PSI, this 5HP unit integrates a mounted air dryer and after-cooler to provide optimal pneumatic overhead, ensuring sensitive tools and precision equipment operate without moisture contamination in a quiet 70 dB atmosphere.

Featuring a two-stage pressure-lubricated pump and an electronic automatic drain, this system maintains exceptional heat dissipation during its 60% duty cycle. Because this model lacks a low oil shutdown sensor, technical operators must perform weekly lubricant verification to protect the cast iron air-end and maintain optimal pump longevity while operating on standard 230V professional shop power.

Key Features of Emax ESP05V080I1PK

• Reliable 5HP motor delivers 20 CFM at 90 PSI output.
• Mounted air dryer ensures moisture-free delivery for sensitive tools.
• Silent technology reduces operational noise to a quiet 70 dB.
• Electronic automatic drain valve simplifies routine moisture management tasks.
• Integrated after-cooler significantly lowers discharge air temperature levels.
• Single-phase 230V configuration fits standard professional shop power.
• Pressure lubrication system protects internal pump bearings under load.
• Solid cast iron pump construction ensures long-term industrial durability.
• Vertical 80-gallon tank design saves critical shop floor space.
• Low-RPM 1,750 motor reduces vibration and component wear rates.

Precision Manufacturing Shop Power

Ideal for laboratories, high-end paint booths, and electronics assembly. The ESP05V080I1PK includes a 1 year warranty for professional reliability. Discover our silent air compressors with dryers to find the ultimate clean-air solution for your specific application.
