Caldwell H90-5-16/12 Steel Fixed Gantry Crane – 10,000 lb, 13.5 ft I-Beam

Description

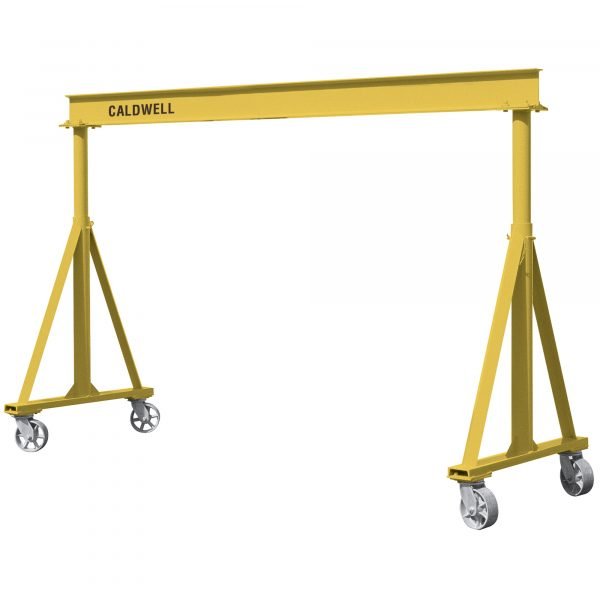

Caldwell H90-5-16/12 Fixed Gantry Crane

Caldwell H90-5-16/12 portable fixed-height steel gantry crane completely eliminates heavy material handling bottlenecks during high-volume production, industrial machinery installations, and routine facility maintenance service schedules. Featuring an advanced heavy-duty structural A-frame configuration, this modular overhead crane establishes rapid temporary lift bays exactly where portability is required. Maintenance crews comfortably maneuver the system across flat concrete bays because heavy-duty swivel casters optimize directional roll movement with minimal effort.

Fabricated from high-grade structural steel alloy to resist severe physical impacts, the 1,833-pound frame effortlessly handles a substantial 10,000-pound maximum payload capacity safely. The spacious assembly incorporates an expansive 13.5-foot structural I-beam, riding on heavy-duty steel casters equipped with smooth roller bearings and integrated grease fittings for simple maintenance. Backed by a 2-year limited warranty, the inclusive knockdown crane kit packages all necessary vertical uprights, legs, and assembly bolts.

Commercial Features and Deployment Data

• Supports overhead structural lifting up to 10,000 pounds
• Features expansive 13.5 foot high strength steel I-beams
• Maintains maximum alignment via fixed height structural frames
• Fabricated from heavy duty rugged structural carbon steel
• Rolls easily using heavy duty greaseable swivel casters
• Utilizes high capacity casters with internal roller bearings
• Weighs 1,833 pounds for heavy workspace stabilization
• Requires 2,263 pounds total shipping freight distribution weight
• Includes complete structural uprights legs and assembly hardware
• Guaranteed by a dependable two year limited warranty
