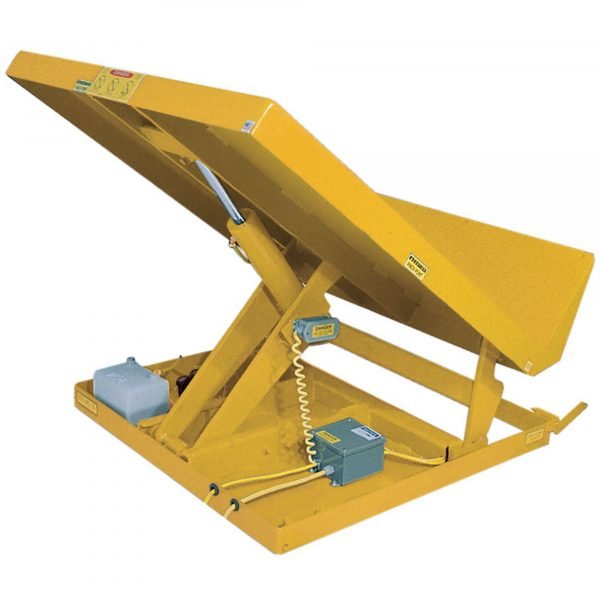

Vestil UNI-4848-6-YEL-230-1 6K Lift and Tilt Table (Yellow, 230V 1-Phase)
In Stock
$3,283.00
In Stock
Vestil UNI-4848-6-YEL-230-1 Lift and Tilt Table delivers an extreme-duty 6,000lb capacity for facilities with 230V single-phase power. This massive 48×48 inch yellow table provides industrial-strength lift and tilt capabilities, offering the ergonomic benefits of high-capacity machinery without the requirement for specialized 3-phase electrical installation.
- Elite 6,000lb Lifting Capacity: Reinforced industrial steel frame supports the heaviest loads with absolute stability.
- Standard 230V 1-Phase Operation: Compatible with common industrial power sources for easier installation.
- Ergonomic Tilt Functionality: Provides a 40-degree angle to simplify the retrieval of parts from deep bins.
- Rugged 48″ x 48″ Work Platform: Large surface area accommodates bulky machinery and oversized pallets.
- Internal Safety Velocity Fuses: Ensures the platform remains stable in the event of a hydraulic pressure loss.
Description
The Single Scissor Lift Tilt Table is designed to position containers within easy reach of assembly line workers and machine operators. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. This Scissor Table comes with a high lip on the tilt side which makes it ideal for parts transfer and assembly. The selector pedal allows the operator to lift while tilting, or tilt then lift. The motor is totally enclosed standard with optional voltages available. Other standard features include: a two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch. Scissor Table must be lagged to the floor.
What’s Included
- (1) Lift Table
| Item# | 4475978 |
| Brand | Vestil |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 763.0 lbs |
| Capacity | 6,000 lb |
| Lowered Height | 8 in |
| Raised Height | 14.75 in |
| Platform Length | 48 in |
| Platform Width | 48 in |
| Material | Steel |
| Tilting | Yes |
| Product Weight | 763.0000 lb |
| Dimensions L x W x H (in.) | 51.5 x 48.0 x 20.0 in |
