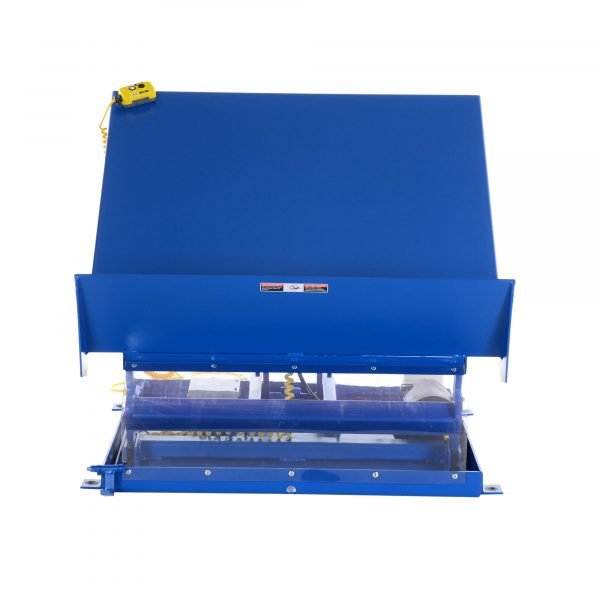

Vestil UNI-4848-4-BLU-230-1 Lift and Tilt Table (4000lb Capacity, 230V, Blue)
In Stock
$2,284.00
In Stock
Vestil UNI-4848-4-BLU-230-1 Lift and Tilt Table provides a professional 4,000lb capacity in a blue finish utilizing 230V single-phase power. This 48×48 inch table is engineered for high-capacity ergonomic pallet handling, allowing operators to lift and tilt loads up to 40 degrees to reach parts without harmful repetitive stretching or bending.
- Professional 4,000lb Industrial Capacity: Robust reinforced steel construction handles heavy loads with structural ease.
- Adjustable Tilt Ergonomics: Increases worker productivity by positioning items at a natural reaching angle.
- Standard 230V 1-Phase Motor: Compatible with common industrial power sources for easier facility integration.
- Expansive 48″ x 48″ Work Surface: Massive platform accommodates oversized machinery and heavy pallets.
- Safety Perimeter Toe Guards: Full-perimeter protection ensures the safety of the operator during descent.
Description
The Single Scissor Lift Tilt Table is designed to position containers within easy reach of assembly line workers and machine operators. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. This Scissor Table comes with a high lip on the tilt side which makes it ideal for parts transfer and assembly. The selector pedal allows the operator to lift while tilting, or tilt then lift. The motor is totally enclosed standard with optional voltages available. Other standard features include: a two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch. Scissor Table must be lagged to the floor.
What’s Included
- (1) Lift Table
| Item# | 4475943 |
| Brand | Vestil |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 827.0 lbs |
| Capacity | 4,000 lb |
| Lowered Height | 8 in |
| Raised Height | 14.75 in |
| Platform Length | 48 in |
| Platform Width | 48 in |
| Material | Steel |
| Tilting | Yes |
| Product Weight | 792.0000 lb |
| Dimensions L x W x H (in.) | 51.5 x 48.0 x 20.0 in |
